Bo mạch nhúng công nghiệp Advantech PCM-9343

Bo mạch nhúng công nghiệp Advantech PCM-9343

• DM&P Vortex86DX, onboard DDR2 memory up to 512 MB
• Display type: VGA, 18/24-bit LVDS, 18/24-bit TTL
• Supports Floating Point Unit, total power consumption 4 ~ 6 Watts, supports extended temperature to -40 ~ 85° C
• Dual Ethernet: 10/100 Ethernet1 and 10/100 Ethernet2, supports PC/104 (8-bit/16-bit ISA) expansion
• Supports SUSIAccess and Embedded Software APIs

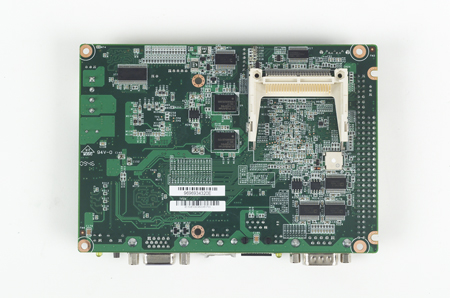

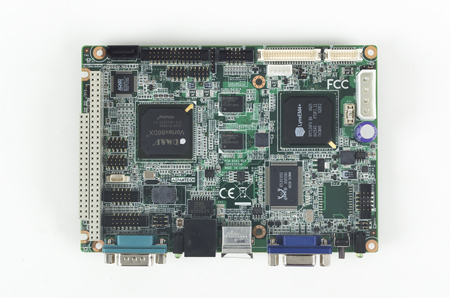

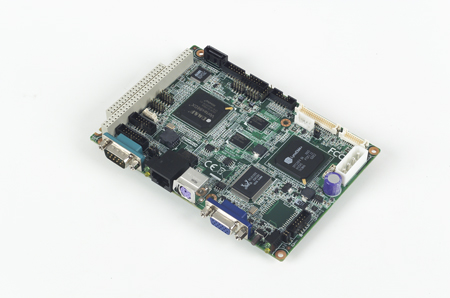

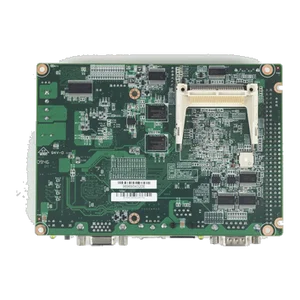

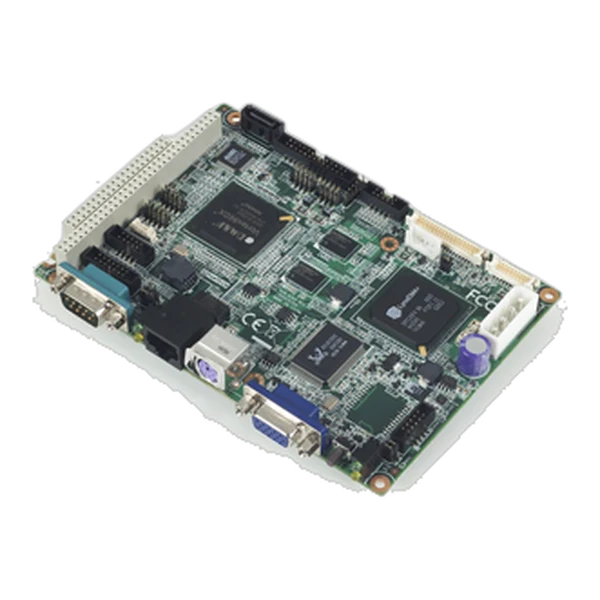

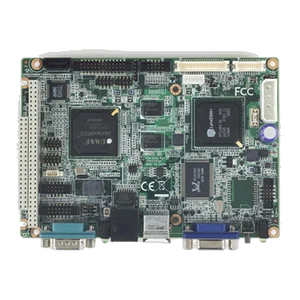

• The PCM-9343 is a 3.5″ SBC (Stackable Board Computer) with DM&P Vortex86DX- 800 MHz SoC. The PCM-9343 has onboard memory up to 256/512MB, supports four USB 2.0 compatible ports, two LAN interface(PCM-9343EFG only), LVDS/TTL/VGA function , and four COM ports. In addition, the PCM-9343 also supports one SATA, one CF slot and one PC/104 expansion.

• Bảo hành 24 tháng
• Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.

Downloads

Bo mạch nhúng công nghiệp Advantech PCM-9343

• Datasheet (PDF), Manual/ Driver/ BIOS/ FAQ
