Máy tính công nghiệp cho trạm điện UNO-4673A

Click lấy báo giá tại đây!

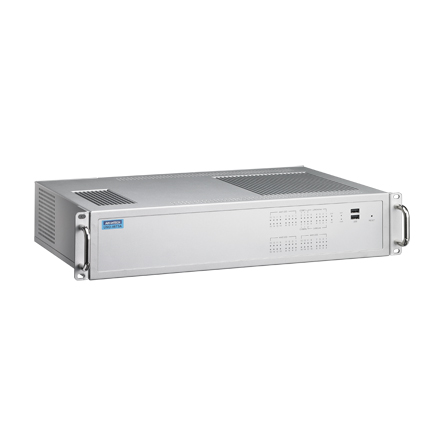

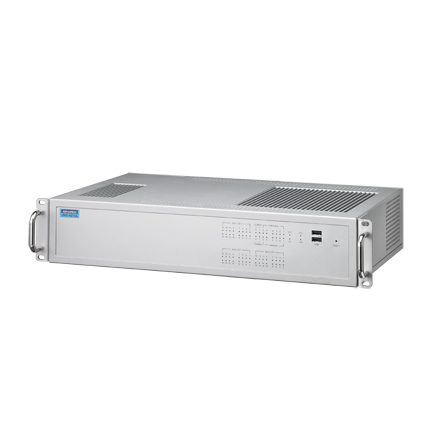

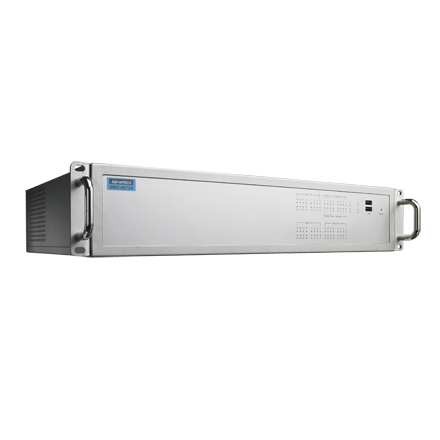

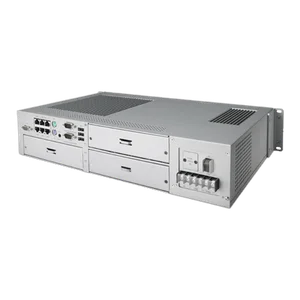

Máy tính công nghiệp cho trạm điện UNO-4673A

Intel® Atom™ Automation Computers with 6 x LAN, 2 x COM and 3 x Expansion Slots
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng
your-image



Máy tính công nghiệp cho trạm điện UNO-4673A

  • IEC 61850-3 and IEEE 1613 compliant for substation automation applications
  • Onboard Intel Atom 1.66 GHz processor
  • 2 x RS-232/422/485 isolated serial ports with automatic flow control and 128KB FIFO
  • 2 x 10/100/1000 Base-T (supports teaming function) and 4 x 10/100 Base-T
  • Supports 1 x internal CF card and 1 x 2.5″ SATA HDD
  • x USB 2.0 (1 x internal) and 3 x Domain I/O expansions

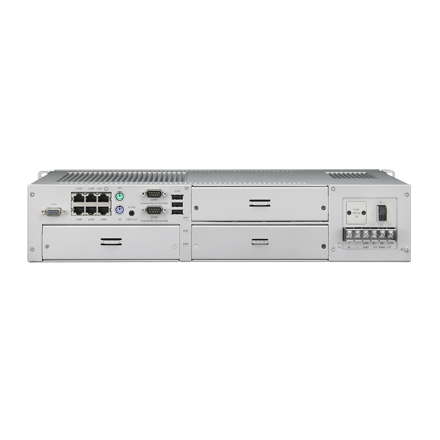

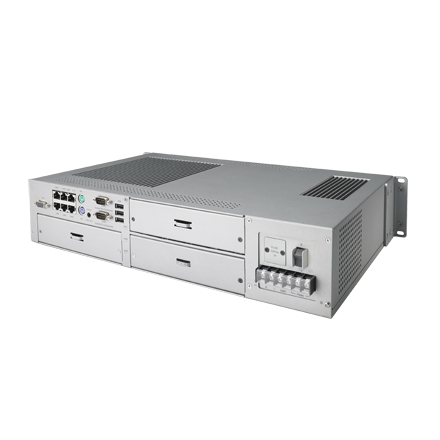

  • Rear wiring, rich system & I/O LED status indicators
  • Windows® CE 6.0, Windows XP Embedded SP2, and Linux ready solution
  • Fanless design with no internal cabling
  • Isolation power design with wide AC / DC input range
  • Isolation between chassis and power ground
  • One internal USB for dongle and flash drive
  • Optional Dual power supplier for system power backup
  • UNO-4673A and UNO-4683 are compliant with the hardware requirements of IEC 61850-3, which defines the international standards of network and system communications in power substations. Featuring fanless designs with built-in isolated PSU and 3 expansion slots for I/O plug-in cards, UNO-4673A and UNO-4683 are suitable for harsh environment applications. The rear I/O connection and LEDs on front panel for all ports and modes highly simplify monitoring for operation and maintenance.
may-tinh-cong-nghiep-UNO-4673A
Máy tính công nghiệp UNO-4673G

CHÍNH SÁCH BÁN HÀNG

  • Bảo hành 24 tháng
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
