Máy tính công nghiệp không quạt ARK-2120F

  • Intel® Atom™ Dual Core D2550 with 3 GbE, 6 COM & Wide Range Power Fanless Box PC
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng
Mã: ARK-2120F Danh mục: Từ khóa: ,
your-image

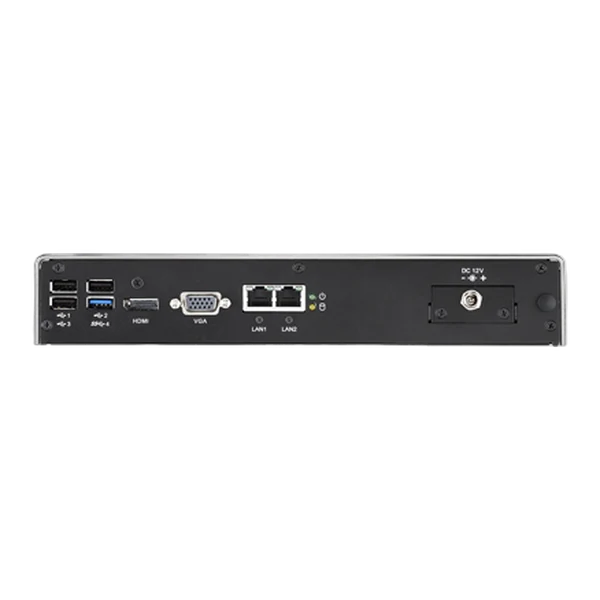

Máy tính công nghiệp không quạt ARK-2120F

Overview

Intel® Atom™ Dual Core D2550 with 3 GbE, 6 COM & Wide Range Power Fanless Box PC

Features

  • Intel® Atom™ Dual Core D2550 1.86 GHz, DDR3 memory supports up to 4 GB
  • VGA, HDMI, 48-bit LVDS, support dual independent display and DirectX 9
  • Mini PCIe expansion with SIM holder for communication module, i.e. HSDPA, WLAN
  • Supports up to 3 x GbE, 5 x USB 2.0 and 6 x COMs ports
  • Supports external CFast socket and 1 x 2.5″ SATA HDD Bay
  • Supports 12 ~ 24V wide range DC input
  • Lockable DC jack design
  • Supports iManager, SUSIAccess and Embedded Software APIs
  • Phase out, last order date: March 31, 2018

Specifications [ARK-2250L]

Part Number
ARK-2120F-S8A1E
Processor
CPU
Intel Atom D2550
Frequency
1.86 GHz (Dual Core)
L2 Cache
1 MB
System Chipset D2550 + Intel NM10
BIOS
ARK-2120F-S8A1E
Memory
Technology
DDR3 1066 MHz (D2550)
Max. Capacity
4 GB
Socket
1 x 204-pin SO-DIMM
Graphics
Chipset
Intel Atom D2550
Graphic Engine
DirectX 9 and OpenGL3.0 support
Hardware decode H/W acceleration: MPEG2
H/W Decode/Acceleration: H.264/VC1/WMV9
VGA
Up to 1920 x 1200
HDMI
Supports 1920 x 1200, Max data rate: up to 1.65 Gb/s, Supports HDMI v1.3 Up to 1080p support
LVDS
Supports 48-bit LVDS, up to 2560 x 1600 (D2550)
Dual Display
Yes, (VGA + HDMI, VGA + LVDS, HDMI + LVDS)
Ethernet
LAN1
10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
LAN2 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
LAN3 10/100/1000 Mbps Intel 82583V GbE, support Wake On Lan
Audio
Interface
Realtek ALC892, High Definition Audio. Line-out, Mic-in, Line-in
I/O Interface
Serial Port
2 x RS-232 ports, 4 x RS-232/422/485 port with auto flow control (by BIOS setting)
USB Interface
5 x USB ports, USB 2.0 Compliant
Other
Digital IO 8-bit
Watchdog Timer 255 levels timer interval, setup by software
Expansion
Mini PCIe
1 x full size Mini PCIe with SIM holder
Storage
HDD
Supports one SATA 2.5″ SATA HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
SSD
Supports one external CFast socket
Software Support
Microsoft Windows
Windows 7 32bit, Windows 7 Embedded 32bit (XP Professional & XP Embedded support by project)
Power
Power Type
AT/ATX
Input Voltage
12 VDC ~ 24 VDC
Minimum Power Input
12 V ~ 24 V, 3.0 A ~ 1.5 A
Power Adaptor
AC to DC, DC19 V/4.73A, 90 W (Optional)
Consumption
Typical
9.2 Watt (with Intel Atom D2550 at 1.8 GHz)
Max
11.59 Watt (with Intel Atom D2550 at 1.8 GHz)
Mechanica
Construction Aluminum housing
Mounting
Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions (W x H x D)
264.50 x 68.39 x 133.0 mm (10.41″ x 2.69″ x 5.24″)
Weight 2.5 kg (5.51 lb)
Environment
Operating Temperature
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with air flow
Storage Temperature – 40 ~ 85° C ( -40 ~ 185° F)
Relative Humidity 95% @ 40° C (non-condensing)
Vibration during Operation With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
EMC CE/FCC Class A, CCC, BSMI
Safety Certifications UL, CCC, BSMI
