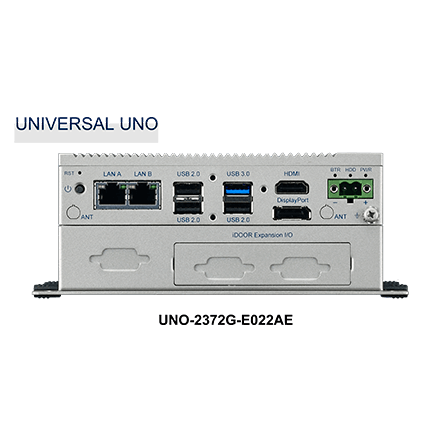

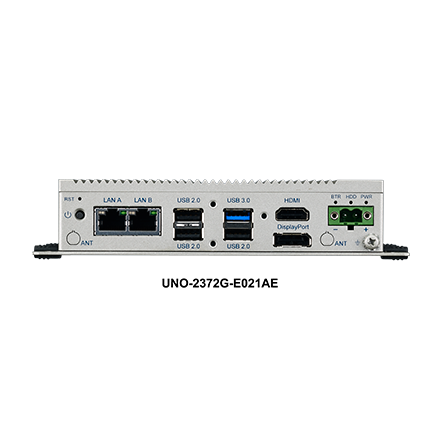

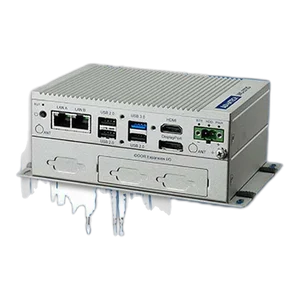

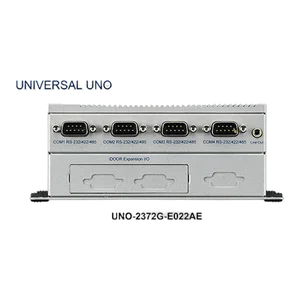

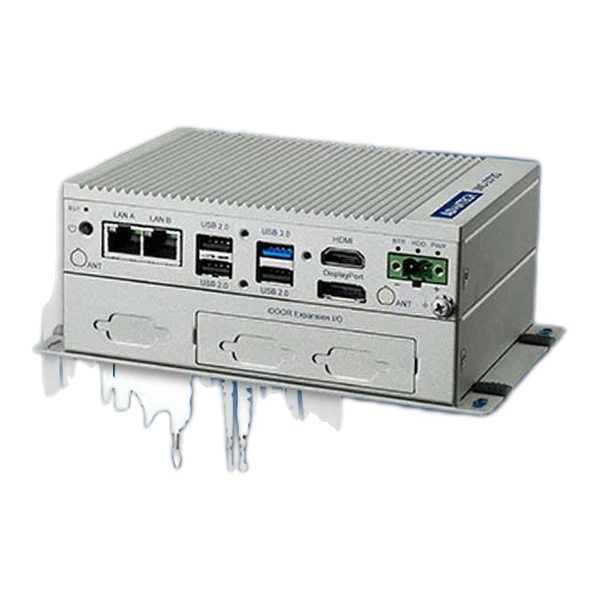

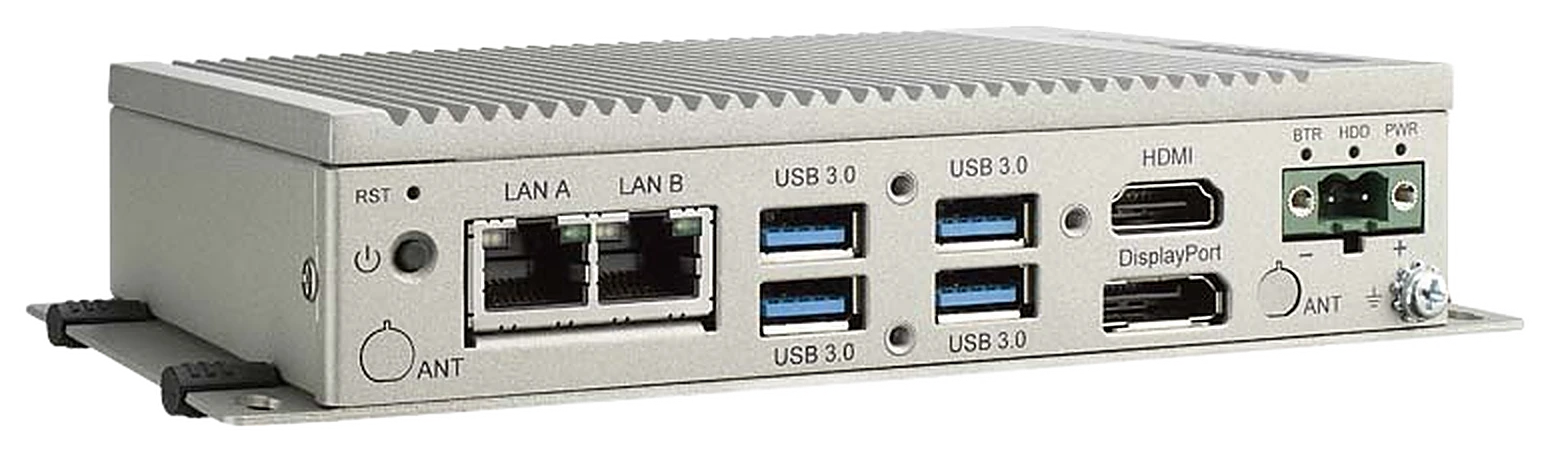

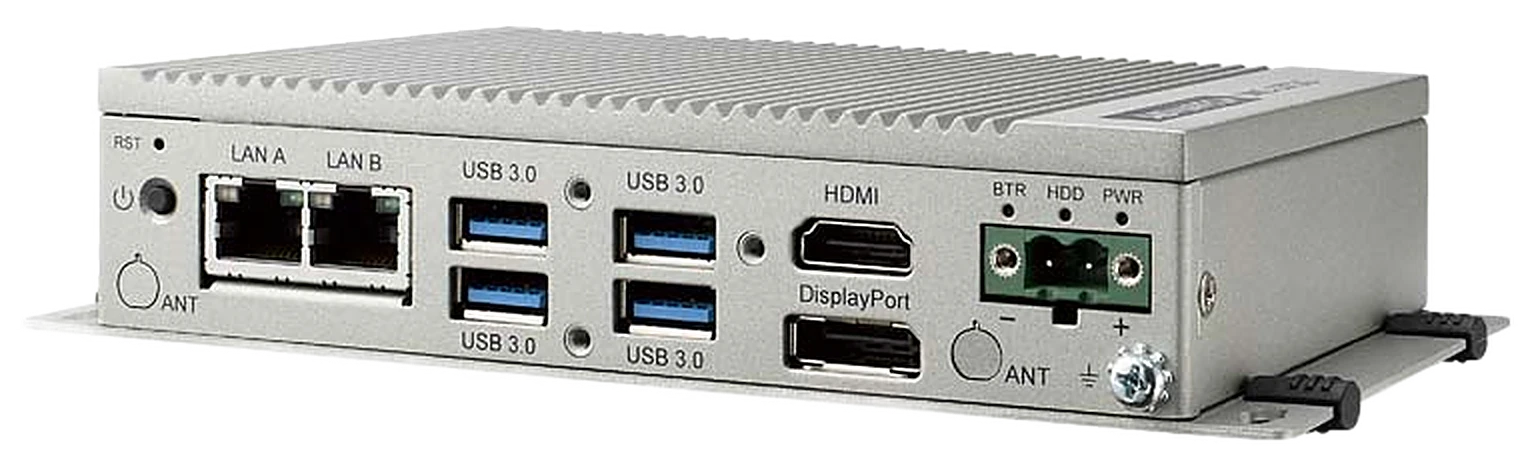

Máy tính công nghiệp không quạt UNO-2372G
- Intel Atom/Celeron Small-Size Modular Box Platform with 2 GbE,4 USB, 4 COM, 2 x mPCIe, HDMI, DP
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
Intel Atom/Celeron Small-Size Modular Box Platform with 2 GbE,4 USB, 4 COM, 2 x mPCIe, HDMI, DP
Dòng Máy tính tự động nhúng UNO-2000 thế hệ mới của Advantech có thiết kế mô-đun và không quạt có độ bền cao.
Mô-đun đáng kinh ngạc của UNO-2372G mang lại nhiều lợi thế về hiệu suất và tiết kiệm chi phí, bao gồm loại bỏ các tính năng và chi phí không cần thiết, tăng tốc sản xuất và phân phối, triển khai và tích hợp nhanh chóng, giảm thời gian ngừng hoạt động của hệ thống và chi phí bảo trì cũng như hỗ trợ nâng cấp và mở rộng trong tương lai.
Thiết kế mô-đun của UNO-2372G có tính năng I / O được tối ưu hóa và ngăn xếp mở rộng thứ hai tùy chọn hỗ trợ công nghệ iDoor của Advantech.
Điều này cho phép các chức năng của nền tảng dễ dàng được mở rộng và tùy chỉnh với việc tích hợp các mô-đun iDoor khác nhau, bao gồm Fieldbus công nghiệp, giao tiếp không dây, I / O và mô-đun ngoại vi, để cung cấp cho mục đích xây dựng,
Part Number | UNO-2372G-E021AE | UNO-2372G-E022AE |
General | ||
Power Consumption | 30W (Typical), 42W (Max) | 30W (Typical), 42W (Max) |
Certifications | CE, FCC, UL, CCC, BSMI | UL, CE, FCC, CCC, BSMI |
Mounting | Stand, Wall, VESA (Optional), Din-rail (Optional) | Stand, Wall, VESA (Optional), Din-rail (Optional) |
Enclosure | Aluminum Housing | Aluminum Housing |
OS Support | Microsoft® Windows 7, Windows 10, Advantech Linux | Microsoft® Windows 7, Windows 10, Advantech Linux |
Weight (Net) | 1 Kg (2.20 lbs) | 1 Kg (2.20 lbs) |
Power Requirement | 10~36 VDC | 10~36 VDC |
Form factor | Small Size | Small Size |
Dimensions ( W x D x H ) | 150 x 105 x 35mm (5.8″ x 4.2″ x 1.4″) | 150 x 105 x 35mm (5.8″ x 4.2″ x 1.4″) |
System Hardware | ||
Memory | Built-in 4GB DDR3L 1333 MHz (Up to 8GB) | Built-in 4GB DDR3L 1333 MHz (Up to 8GB) |
Storage | 1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD) | 1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5″ HDD (Compatible with 9.5mm height HDD) |
Watchdog Timer | Programmable 255 levels timer interval, from 1 to 255 sec | Programmable 255 levels timer interval, from 1 to 255 sec |
Expansion | 2 Full-size mPCIe | 2 Full-size mPCIe |
BIOS | AMI EFI64 Mbit | AMI EFI64 Mbit |
Processor | Intel Atom E3815 1.46GHz | Intel Atom E3815 1.46GHz |
Graphics Engine | Intel® HD Graphics | Intel® HD Graphics |
Ethernet | Intel i210 GbE, 802.10av, IEEE1588/802.1AS, 803.3az | Intel 82583V GbE, 802.10av, IEEE1588/802.1AS, 803.3az |
LED Indicators | LEDs for Power, RTC battery, LAN (Active, Status) and HDD | LEDs for Power, RTC battery, LAN (Active, Status) and HDD |
I/O Interface | ||
Serial Ports | 4 x RS232/422/485, DB9, 50 ~ 115.2kbps | 4 x RS232/422/485, DB9, 50 ~ 115.2kbps |
Displays | 1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz | 1 x DisplayPort 1.2, supports 2560x1440p @60Hz ; 1 x HDMI v1.4, supports 1920x1080p @60Hz |
USB Port | 1 x USB 3.0, 3 x USB 2.0 Compliant | 1 x USB 3.0, 3 x USB 2.0 Compliant |
Power Connector | 1x 2 Pins, Terminal Block | 1x 2 Pins, Terminal Block |
LAN Ports | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet | 2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet |
Environment | ||
Relative Humidity | 10 ~ 95% @ 40°C non-condensing | 10 ~ 95% @ 40°C non-condensing |
Vibration Protection | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) | Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA), Operating, IEC 60068-2-64, 0.75Grms, random, 5 ~ 500Hz, 1hr/axis (HDD) |
Ingress Protection | IP40 | IP40 |
Shock Protection | Operating, IEC 60068-2-27, 50G, half sine, 11ms | Operating, IEC 60068-2-27, 50G, half sine, 11ms |
Operating Temperature | – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow | – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow |
Storage Temperature | -40 ~ 85°C ( -40 ~ 185°F) | -40 ~ 85°C ( -40 ~ 185°F) |
