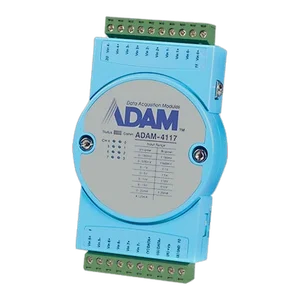

Name: Bộ thu thập tín hiệu Analog ADAM-4117
SKU: ADAM-4117

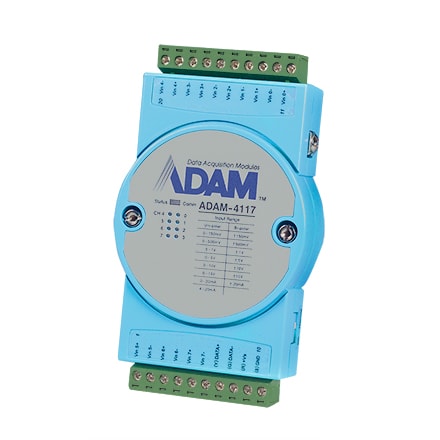

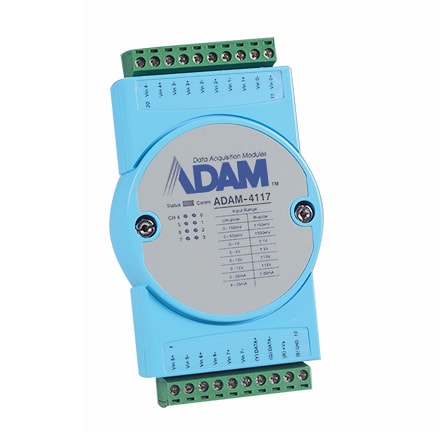

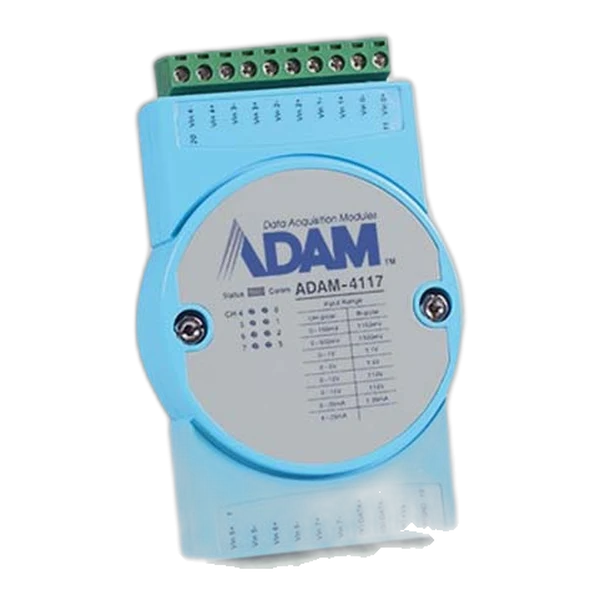

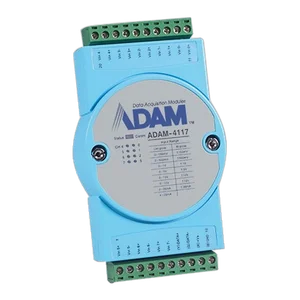

Bộ thu thập tín hiệu Analog ADAM-4117

Robust 8-ch Analog Input Module with Modbus

8 differential and independent configuration channels
Broader operating temperature range
LED display allows to monitor the status address settings
Higher noise immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD protection
Broader power input range: 10 ~ 48VDC

Bộ thu thập tín hiệu Analog ADAM-4117

8 differential and independent configuration channels
Broader operating temperature range
LED display allows to monitor the status address settings
Higher noise immunity: 1 kV surge protection on power inputs, 3 kV EFT, and 8 kV ESD protection
Online firmware update

Display	LED Indicators	Status, Comm, and Ch. enable
Power Supply	Power Requirement	10~48 VDC
Analog Input	Channels	8 differential
	Voltage Range	0~150 mV 0~500 mV 0~1V 0~5 V 0~10 V ±150 mV ±500 mV ±1 V ±5 V ±10 V ±15 V
	Current Input	±20 mA 0~ 20 mA 4~20 mA
	Burn-out Detection	Yes (4~20 mA)
	Channel Independent Configuration	Yes
	Sampling Rates	10/100 samples/second (total)
	Resolution	16-bit
	Input Impedance	Voltage: 800 kOhm Current: 120 Ohm
	Span Drift	±25 ppm/°C
	Zero Drift	±6 µV/°C
	CMR @ 50/60 Hz	92 dB
	NMR @ 50/60 Hz	60 dB
	High Common Mode	200 VDC
General	Watchdog Timer	System (1.6 second) & Communication
	Connector	2 x plug-in terminal block (#14~22 AWG)
	Temperature (Operating)	-40~85°C (40~185 °F)
	Humidity	5~95 %RH
	Temperature (Storage)	-40~85°C (40~185 °F)
	Interface	RS-485
	Isolation Protection	3000 VDC
	Communication Protocol	ASCII command & Modbus/RTU
	Communication Speed	Serial: From 1,200 to 115.2 k
	Comm. Distance	Serial: 1.2 km
	Data Flow Control	Yes
