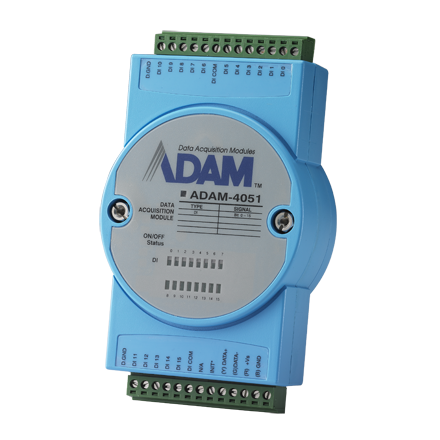

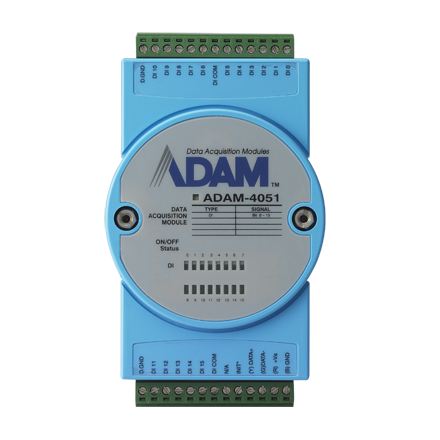

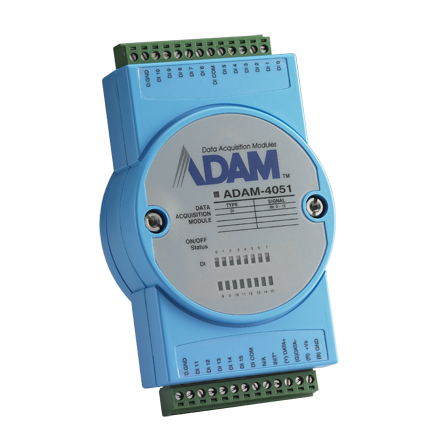

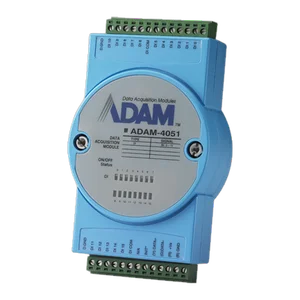

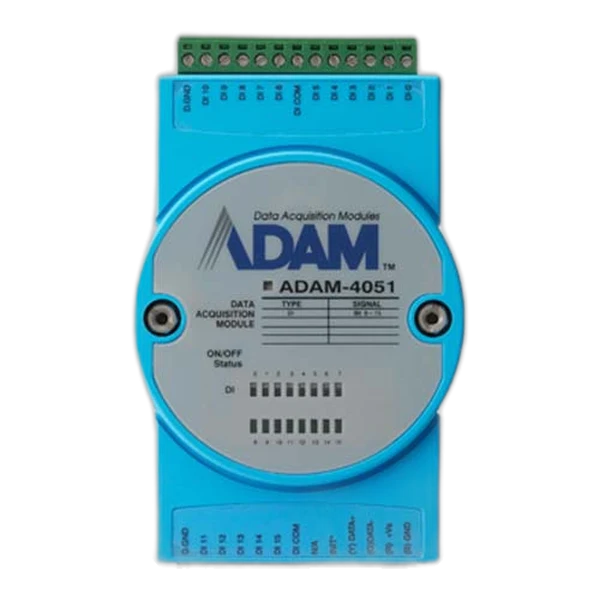

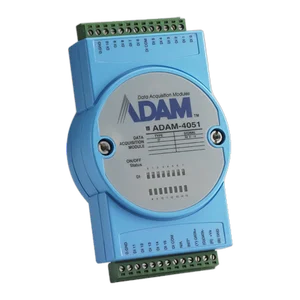

Bộ thu thập tín hiệu Digital ADAM-4051
- 16 digital input channels
- Digital input for dry contact or wet contact
- Input Voltage level: 10~50V
- Over voltage protection: 70 Vdc
- 2,500 Vdc optical isolation
Bộ thu thập dữ liệu Adam-4051
Display |
LED Indicators |
Power, DI |
Power Supply |
Power Requirement |
10~30 VDC |
General |
Watchdog Timer |
System (1.6 second) |
Connector |
2 x plug-in terminal block (#14~28 AWG) |
Temperature (Operating) |
-10~70 °C (14~158 °F) |
Humidity |
5~95 %RH |
Temperature (Storage) |
-25~85 °C (-13~185 °F) |
Interface |
RS-485 |
Isolation Protection |
2,500 VDC |
Communication Protocol |
ASCII command & Modbus/RTU |
Communication Speed |
Serial: From 1,200 to 115.2 k |
Comm. Distance |
Serial: 1.2 km |
Data Flow Control |
Yes |
Digital Input |
Channles |
16 |
Input Voltage |
Dry contact: Logic level 0: close to GND Logic level 1: open
Wet contact: Logic level 0: 3 VDC max. Logic level 1: 10~50 VDC |
Bảo hành 24 tháng
Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
