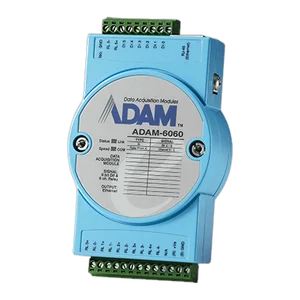

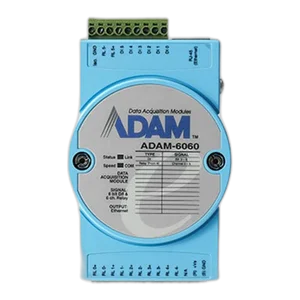

Name: Bộ thu thập tín hiệu Digital ADAM-6060
SKU: ADAM-6060

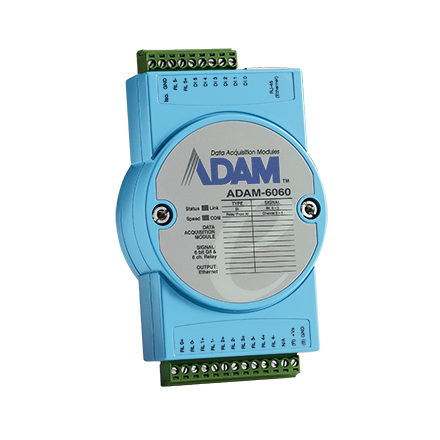

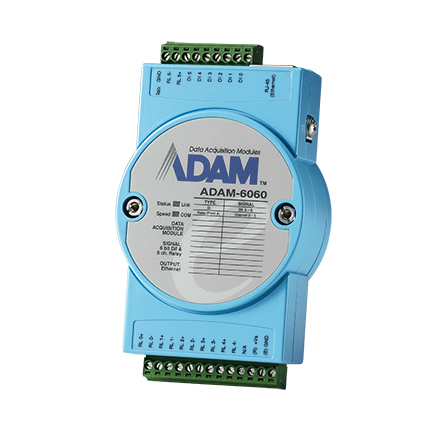

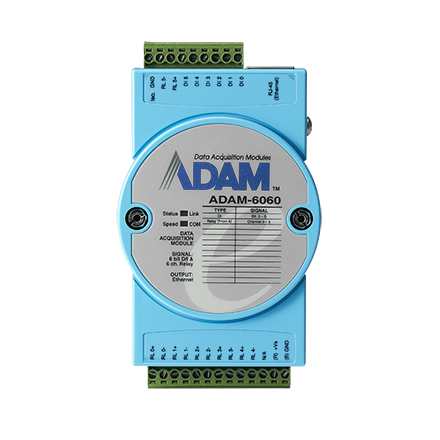

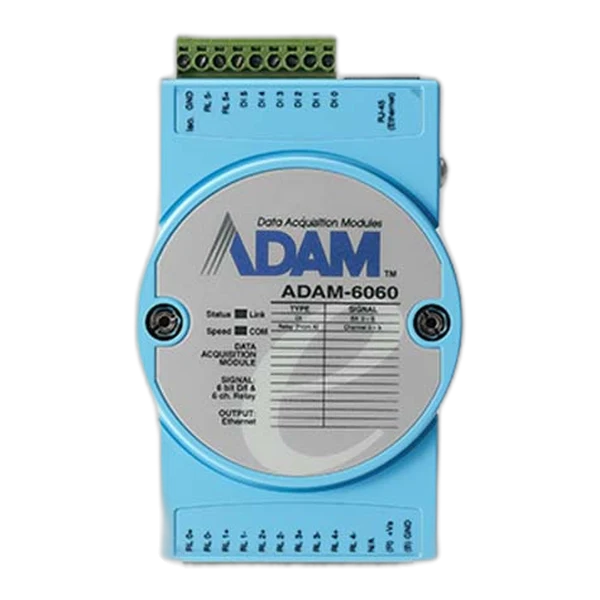

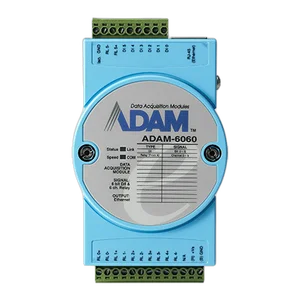

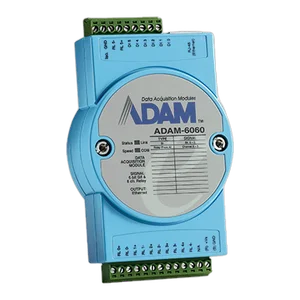

Bộ thu thập tín hiệu Digital ADAM-6060

6-ch Digital Input and 6-ch Relay Modbus TCP Module

6-ch DI, 6-ch RL, Ethernet-based smart I/O
Remote monitoring and control with mobile devices
Group configuration capability for multiple module setup
Flexible user-defined Modbus address
Intelligent control ability by Peer-to-Peer and GCL function
Active I/O message by data stream or event trigger function
Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
Web language support: XML, HTML 5, Java Script
Bảo hành 24 tháng

Mục lục

Bộ thu thập tín hiệu Digital ADAM-6060

6-ch DI, 6-ch RL, Ethernet-based smart I/O
Remote monitoring and control with mobile devices
Group configuration capability for multiple module setup
Flexible user-defined Modbus address
Intelligent control ability by Peer-to-Peer and GCL function
Active I/O message by data stream or event trigger function
Multiple protocol support: Modbus TCP, TCP/IP, UDP, HTTP, DHCP
Web language support: XML, HTML 5, Java Script

DisplayLED IndicatorsStatus, Comm, Link, SpeedPower SupplyPower Requirement10~30 VDCDigital I/OFrequency InputDI counters (32-bit + 1-bit overflow, 3kHz max.)GeneralWatchdog TimerSystem (1.6 second) & Communication (programmable)Temperature (Operating)-20 ~ 70°C (-4 ~ 158°F)Humidity20~95 %RHTemperature (Storage)-30 ~ 80°C (-22 ~ 176°F)Interface10/100Base-T(X)Peer-to-PeerYesGCLYesIsolation Protection2000 VDCCommunication ProtocolModbus/TCP, TCP/IP, UDP, and HTTPCommunication SpeedEthernet: 10/100MbpsComm. DistanceEthernet: 100 mConnector1 x RJ-45 (LAN) & 2 x plug-in terminal block (I/O and power)Digital InputInput VoltageDry contact: Logic level 0: close to GND Logic level 1: openWet contact: Logic level 0: 0~3 VDC Logic level 1: 10~30 VDCChannels6Digital OutputChannels6-ch relay support pulse output
