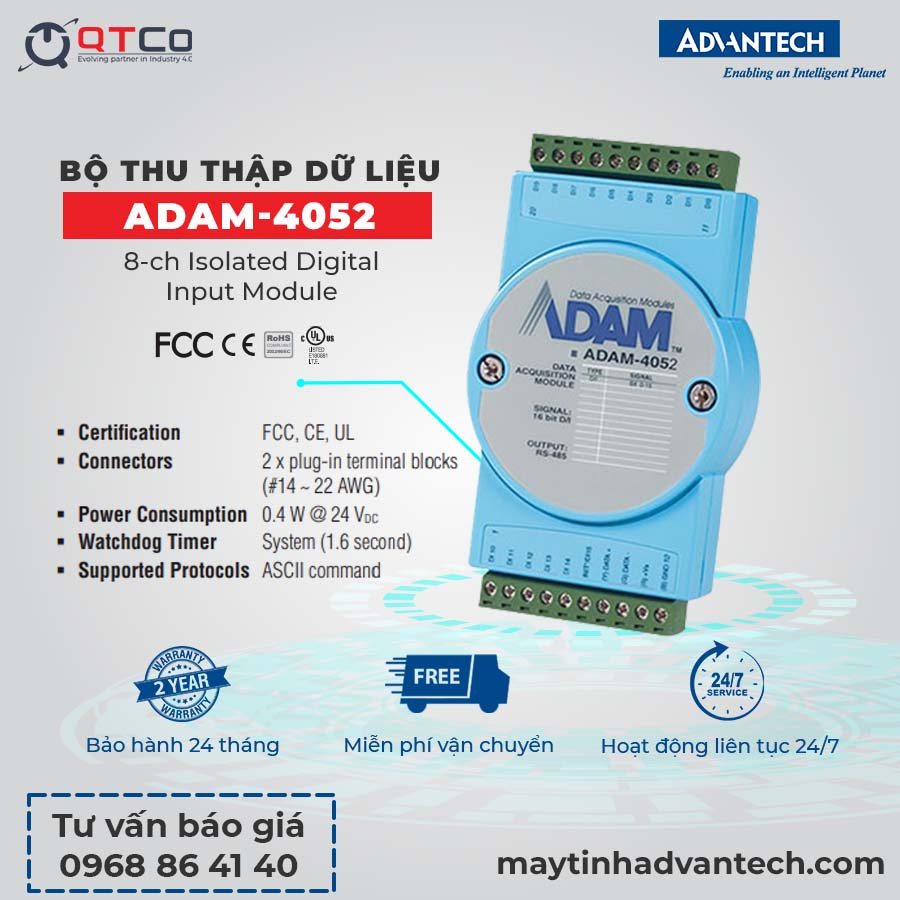

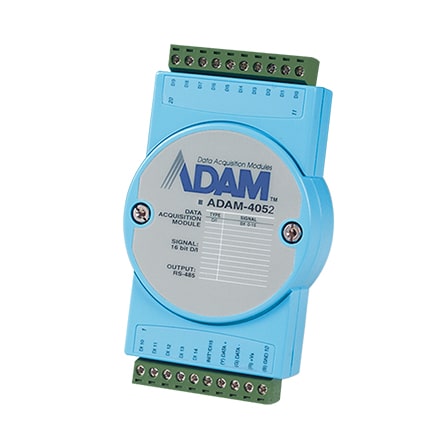

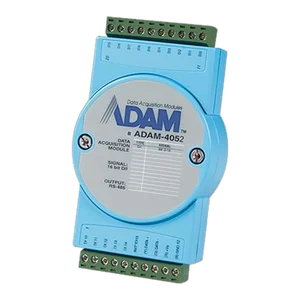

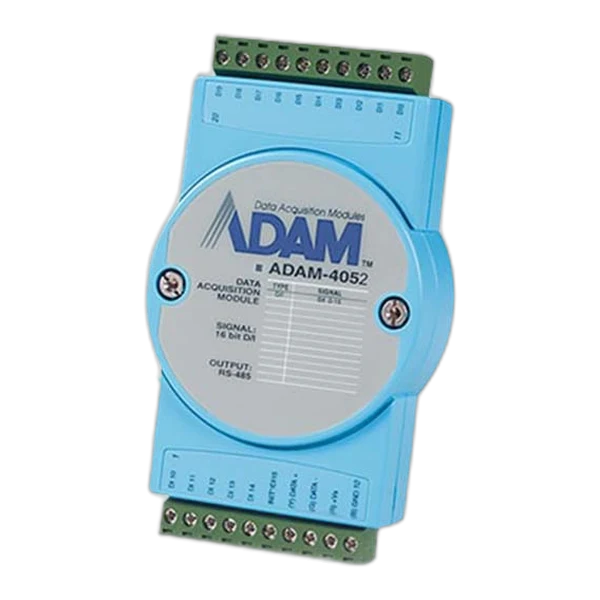

Bộ thu thập tín hiệu Digital ADAM-4052
8-ch Isolated Digital Input Module
- Six fully independent isolated channels.
- Two isolated channels with common ground
- Isolation voltage: 5000 V RMS
- Bảo hành 24 tháng
Bộ thu thập tín hiệu Digital ADAM-4052
8-ch Isolated Digital Input Module
Bộ thu thập tín hiệu Digital ADAM-4052
Display | LED Indicators | Power |
Power Supply | Power Requirement | 10~30 VDC |
General | Watchdog Timer | System (1.6 second) |
Connector | 2 x plug-in terminal block (#14~22 AWG) | |
Temperature (Operating) | -10~70 °C (14~158 °F) | |
Humidity | 5~95 %RH | |
Temperature (Storage) | -25~85 °C (-13~185 °F) | |
Interface | RS-485 | |
Isolation Protection | 5,000 VRMS | |
Communication Protocol | ASCII command | |
Communication Speed | Serial: From 1,200 to 115.2 k | |
Comm. Distance | Serial: 1.2 km | |
Data Flow Control | Yes | |
Digital Input | Channles | 8 |
Input Voltage | Logic level 0: 1 VDC max. Logic level 1: 3~30 VDC |
Bảo hành 24 tháng
Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
Downloads
Bộ thu thập tín hiệu Digital ADAM-4052
