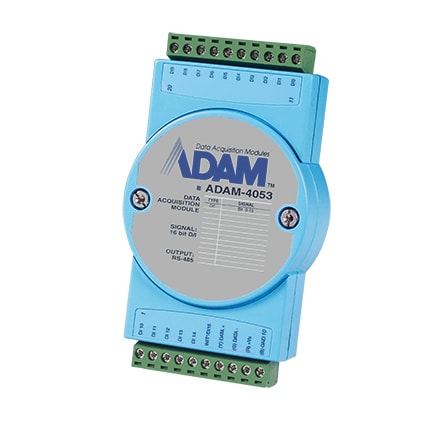

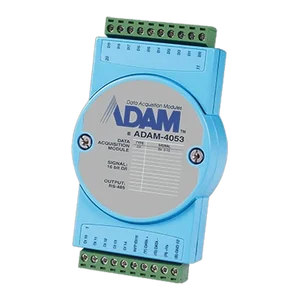

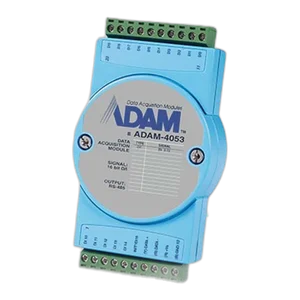

Bộ thu thập dữ liệu Digital ADAM-4053
16-ch Digital Input Module
- 16 input channels
- Watchdog Timer
- Bảo hành 24 tháng

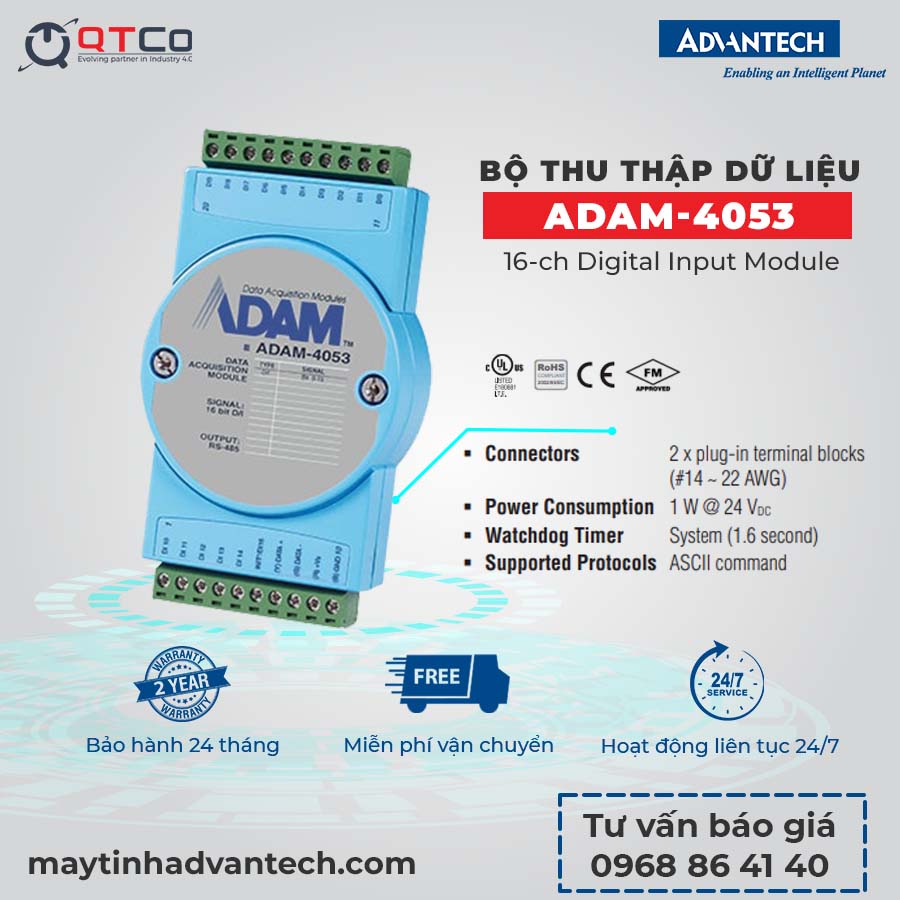

Bộ thu thập dữ liệu Digital ADAM-4053
16-ch Digital Input Module

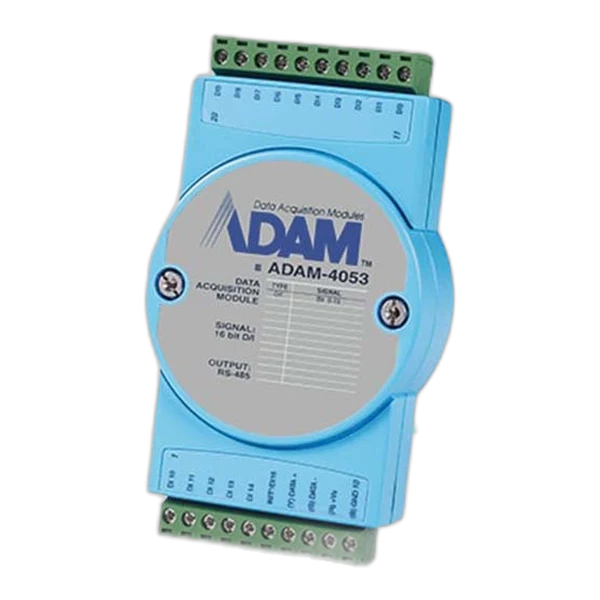

Bộ thu thập dữ liệu Digital ADAM-4053
Display | LED Indicators | Power |
Power Supply | Power Requirement | 10~30 VDC |
General | Watchdog Timer | System (1.6 second) |
Connector | 2 x plug-in terminal block (#14~22 AWG) | |
Temperature (Operating) | -10~70 °C (14~158 °F) | |
Humidity | 5~95 %RH | |
Temperature (Storage) | -25~85 °C (-13~185 °F) | |
Interface | RS-485 | |
Communication Protocol | ASCII command | |
Communication Speed | Serial: From 1,200 to 115.2 k | |
Comm. Distance | Serial: 1.2 km | |
Data Flow Control | Yes | |
Digital Input | Channles | 16 |
Input Voltage | Dry contact: Logic level 0: close to GND Logic level 1: open
Wet contact: Logic level 0: 2 VDC max. Logic level 1: 4~30 VDC |
Bảo hành 24 tháng
Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
