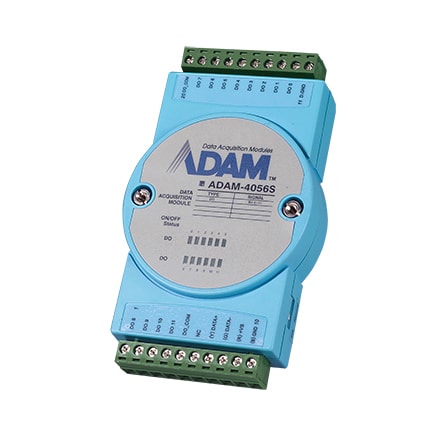

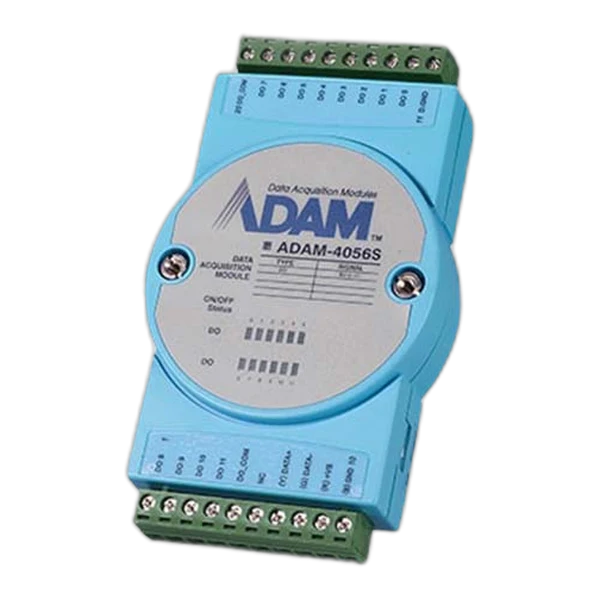

Bộ thu thập tín hiệu Digital ADAM-4056S
12-ch Sink Type Isolated Digital Output Module with Modbus
- Sink Type: Digital Output
- Digital Output: Open collector to 40V (200 mA max. load)
- 12 Channels
- I/O Type: Sink Type Output
- Bảo hành 24 tháng
Bộ thu thập tín hiệu Digital ADAM-4056S
12-ch Sink Type Isolated Digital Output Module with Modbus
Bộ thu thập tín hiệu Digital ADAM-4056S
Display | LED Indicators | Power, DO |
Power Supply | Power Requirement | 10~30 VDC |
General | Watchdog Timer | System (1.6 second) & Communication |
Connector | 2 x plug-in terminal block (#14~22 AWG) | |
Temperature (Operating) | -10~70 °C (14~158 °F) | |
Humidity | 5~95 %RH | |
Temperature (Storage) | -25~85 °C (-13~185 °F) | |
Interface | RS-485 | |
Isolation Protection | 5,000 VDC | |
Communication Protocol | ASCII command & Modbus/RTU | |
Communication Speed | Serial: From 1,200 to 115.2 k | |
Comm. Distance | Serial: 1.2 km | |
Data Flow Control | Yes | |
Digital Output | Channels | 12 (Sink type) Open collector to 40V, 200 mA max. load |
Power Dissipation | Chanel: 1 W max Total: 2.2 W (8 Channels) |
Bảo hành 24 tháng
Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
Downloads
Bộ thu thập tín hiệu Digital
