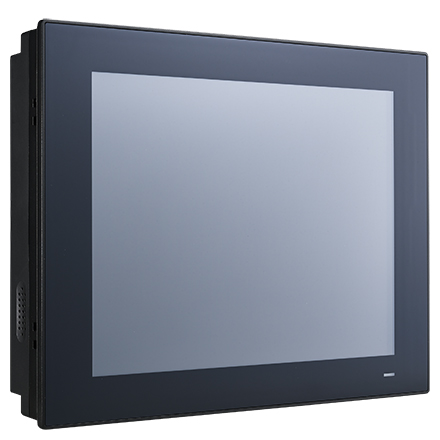

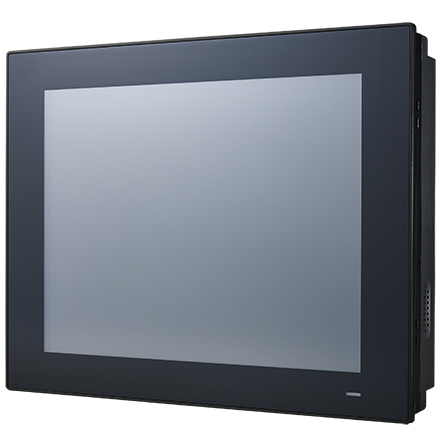

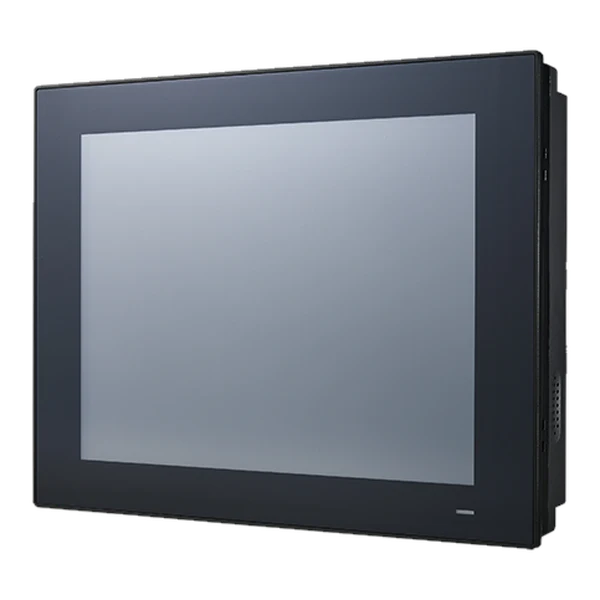

Panel PC công nghiệp PPC-3120-RAE

Mô tả Panel PC công nghiệp PPC-3120-RAE

Panel PC công nghiệp PPC-3120-RAE

Overview

12.1" Fanless Panel PC with Intel® Atom™ D2550 Processor PPC-3120-RAE là Panel PC không quạt 12,1 inch dùng bộ xử lý Intel® Atom™ D2550 lõi kép 1,86 GHz, nguồn vào 12~30 VDC. Máy có 4 cổng COM (3 x RS-232, 1 x RS-232/422/485 chỉnh qua BIOS), 4 x USB 2.0 và 2 cổng Gigabit Ethernet, dễ tích hợp và kết nối.

Features

• 12.1" TFT XGA LED Panel with resistive touchscreen
• Embedded Intel® Atom™ processor D2550 1.86 GHz
• System memory up to 4 GB DDR3 1066 SDRAM
• Supports one internal SATA 2.5" HDD and 1 x mSATA socket
• Optional PCI/PCIe x1 expansion kit
• Fanless design and low power consumption
• Automatic data flow control over RS-485
• Adjust RS-232/422/485 through BIOS
• COM1/COM2 pin9 RI/5V/12V adjustable through BIOS

Specifications

Part Number	PPC-3120-RAE
Processor System
CPU	Intel Atom D2550 1.86GHz 10W Dual Core CPU on board
Frequency	1.86 GHz
2nd Cache Memory	1 MB
Chipset	Intel NM10
Memory	SO-DIMM x 1, DDR3 1066, Max 4 GB
Storage	1 x 2.5" SATA Bay, 1 x mSATA Bay
Network (LAN)	2 x 10/100/1000 Mbps Ethernet
I/O Ports	4 x Serial ports: 3 x RS-232, 1x RS-232/422/485 (Adjustable through BIOS), 4 x USB 2.0 ports, 1 x Line-out, 1x MIC-in, 1 x DB15 VGA ,1 x DB9 GPIO port (8 pin programable)
Expansion Slots	1 x Mini PCIe;1 x PCIe x1; 1 x PCI
Speaker	2 x 1W speakers
Watchdog Timer
Watchdog Timer	255 timer levels, set up by software
Physical Characteristics
Dimensions	325 x 253.8 x 58.4 mm (12.79" x 10" x 2.3")
Weight	3.3 kg (7.27 lb)
Power Supply
Input Voltage	12-30 VDC
Power Consumption	36 W (Burn-in test 7.0 in Windows 7 32bit);34 W (Burn-in test 7.0 in Windows XP 32bit)
OS Support
OS Support	Microsoft® Windows XPE / Windows XP Pro / WES7 32bit / WEC7 / Windows 7 32bit / Linux
Display
Display Type	12.1" TFT LCD (LED Backlight)
Max. Resolution	1024 x 768
Viewing Angle	80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2)	600
Contrast Ratio	700:1
Backlight Life (hrs)	50,000 hrs (typical)
Touchscreen
Touch Type	Analog Resistive 5-wire
Light Transmission	81±3%
Controller	RS-232 interface
Durability (Touches)	36 million
Environment
Operating Temperature	0 ~ 50°C (32 ~ 122°F)
Storage Temperature	-20 ~ 60°C (-4 ~ 140°F)
Relative Humidity	10 ~ 95% @ 40° C (non-condensing)
Shock Protection	Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Vibration Protection	Operating Random Vibration Test 5~500Hz, 1Grms, follow IEC 60068-2-64
EMC	BSMI, CE, FCC Class B
Safety	CB, CCC, BSMI, UL
Front Panel Protection	IP65 Compliant
