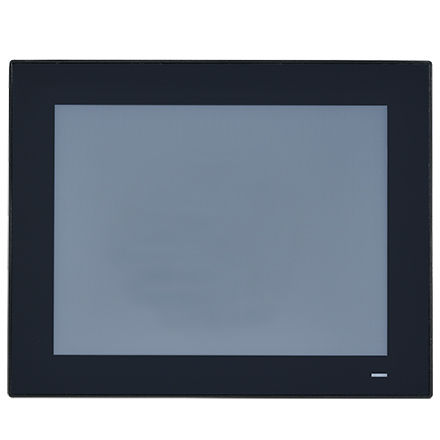

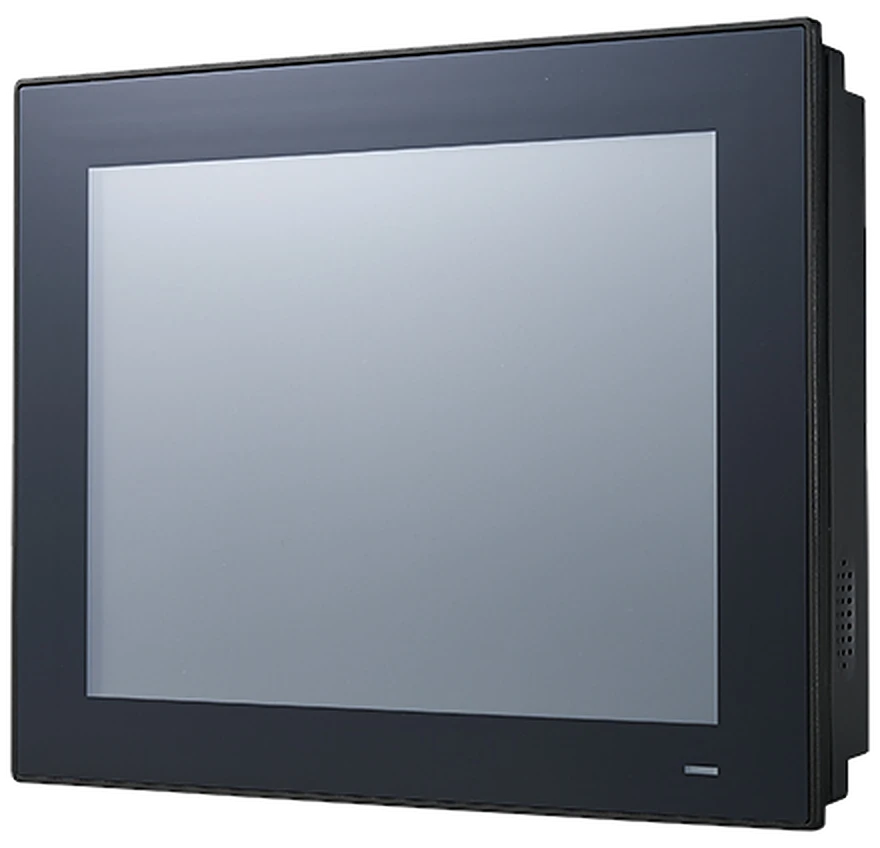

Màn hình cảm ứng PPC-3100-RE9A

  • 10.4″ Fanless Panel PC with Intel® Atom™ E3940 Processor
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng



your-image

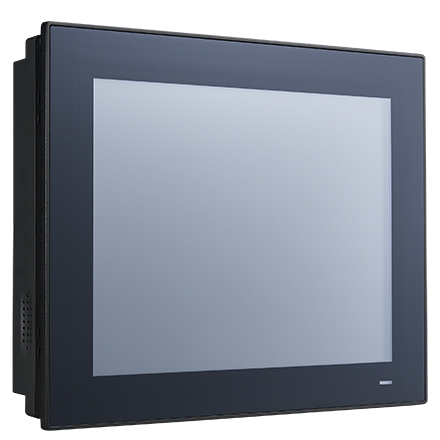

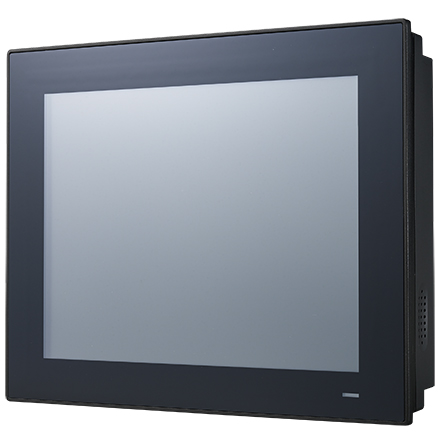

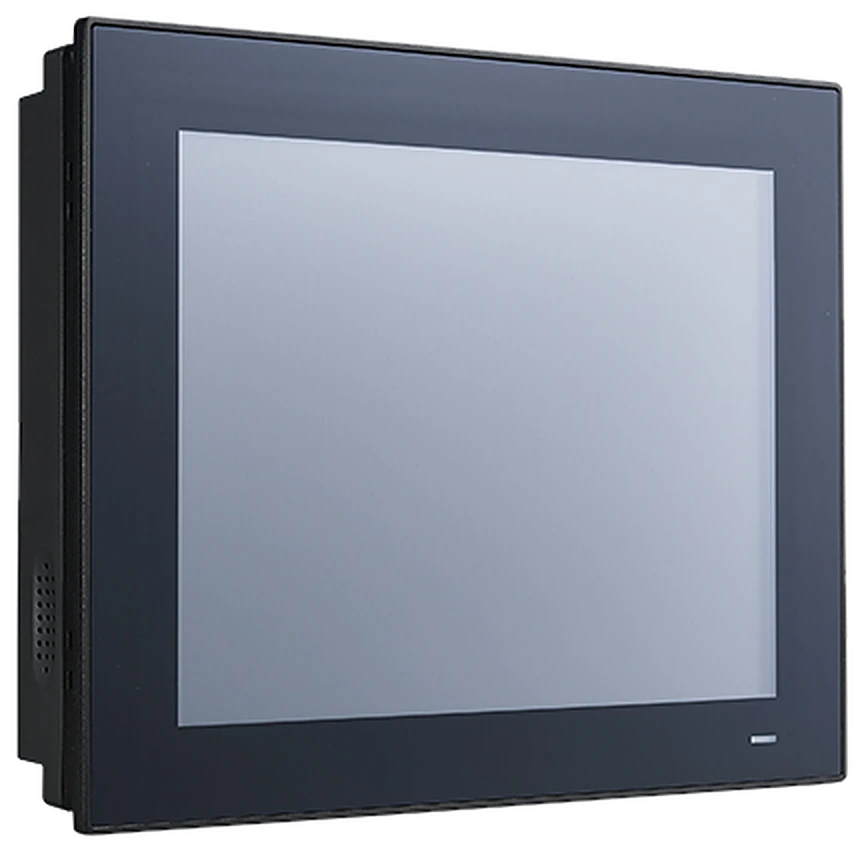

Màn hình cảm ứng PPC-3100-RE9A

Overview

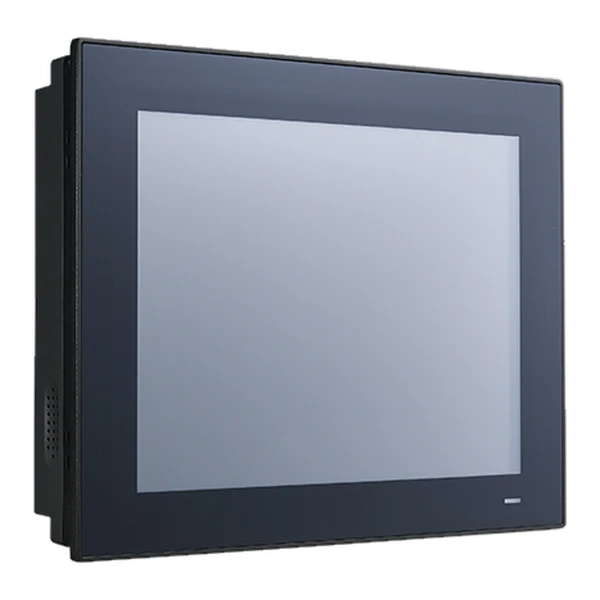

10.4″ Fanless Panel PC with Intel® Atom™ E3940 Processor

PPC-3100 là máy tính bảng điều khiển không quạt 10,4 “được trang bị bộ vi xử lý lõi tứ Intel® Atom ™ E3940 hiệu năng cao hỗ trợ dải đầu vào điện năng rộng (9 ~ 32 VDC).
Cung cấp nhiều I / O, bao gồm 4 x COM, 4 x USB 3.0, 1 x RS-422/485 cách ly và Intel® Gigabit Ethernet kép, đảm bảo tích hợp và kết nối dễ dàng.

Features

  • 10.4″ SVGA TFT LCD with resistive touchscreen
  • Intel® Atom™ E3940, 1.6 GHz, processor
  • Up to 8 GB DDR3L 1866 SDRAM
  • Supports 1 x internal 2.5″ SATA HDD and 1 x mSATA
  • Fanless design with low power consumption
  • Wide range DC support (9 ~ 32 VDC)
  • 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
  • Optional GPIO (8 channels, TTL level)

Specifications



Part Number PPC-3100-RE9A
Processor System
CPU
Intel® Atom™ E3940 quad core
Frequency
1.6 GHz
L3 Cache
2M
Memory
1 x SODIMM DDR3L 1866 MHz (max. 8 GB)
Storage
1 x 2.5″ SATA bay
Network (LAN)
2 x 10/100/1000 Mbps Ethernet (Intel I210)

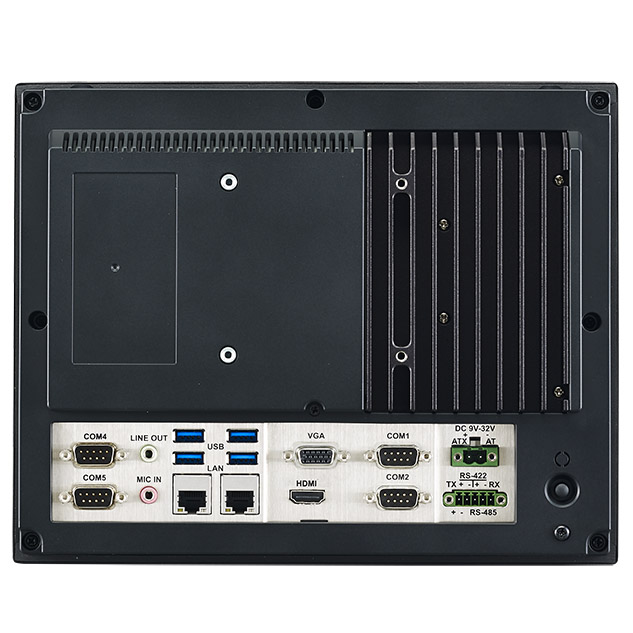

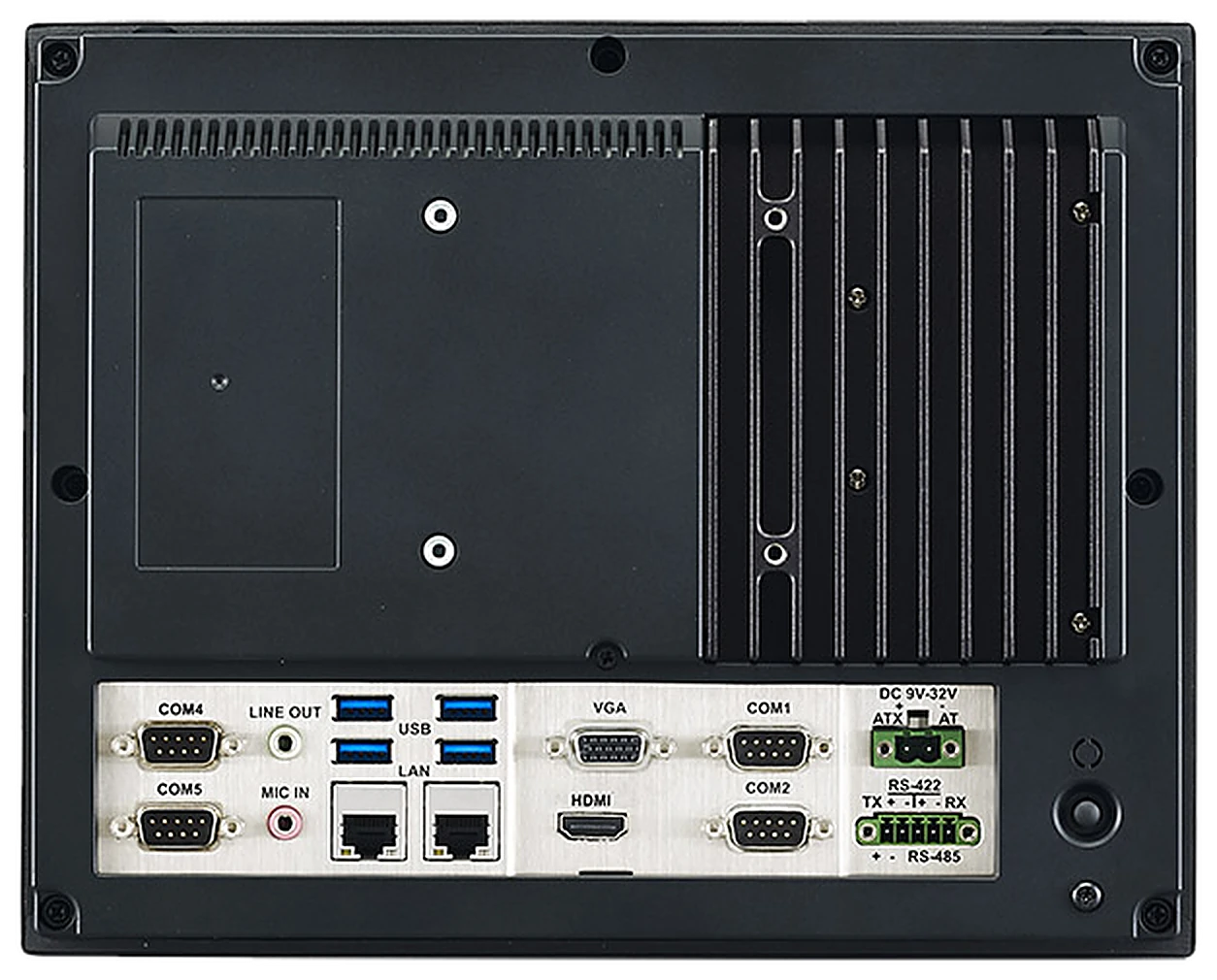

I/O Ports
5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS) ;4 x USB 3.0;1 x Line-out, 1 x Mic-in;1 x VGA;1 x HDMI;1 x GPIO (8 channels, TTL level, internal)
Expansion Slots
1 x Mini PCIe
Watchdog Timer
255 timer levels; setup by software
Speaker
2 x 1W
Physical Characteristics
Dimensions
271.8 x 216.8 x 57.5 mm (10.7 x 8.53 x 2.26 in)
Weight
2.8 kg (6.17 lb)
OS Support
OS Support
Microsoft® Windows 10 IoT Enterprise, Linux, Android 6.0 Marshmallow
Power Supply
Input Voltage
9-32 VDC
Power Consumption
30W (Burn-in test 7.0 in Windows 7 32 bit)
Display
Display Type
10.4″ TFT LCD (LED Backlight)
Max. Resolution
800 x 600
Viewing Angle
80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2)
400
Backlight Life (hrs)
30, 000 hrs (typical)
Touchscreen
Touch Type
Analog resistive (5-wire)
Light Transmission
80% ±5
Controller
USB interface
Durability (Touches)
Greater than 35 million touches in one location without failure
Environment
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storage Temperature
-30 ~ 60°C (-22 ~ 140°F)
Safety
CB, CCC, BSMI, UL
Relative Humidity
10 ~ 95% @ 40° C (non-condensing)
Shock Protection
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Vibration Protection
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI
Front Panel Protection
IP65 Compliant







Chính sách bán hàng

  • Bảo hành 24 tháng
  • Miễn phí vận chuyển toàn quốc
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
