Màn hình cảm ứng PPC-3120-RE9A

Click lấy báo giá tại đây!

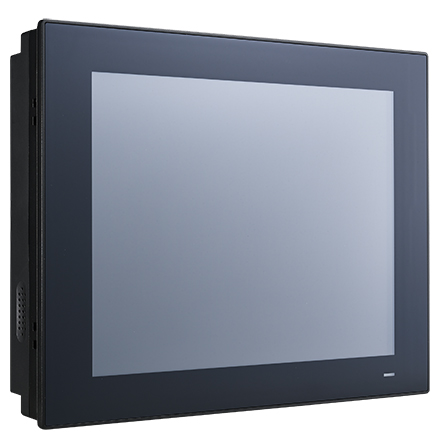

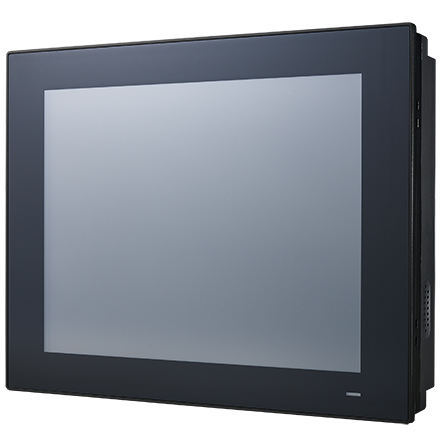

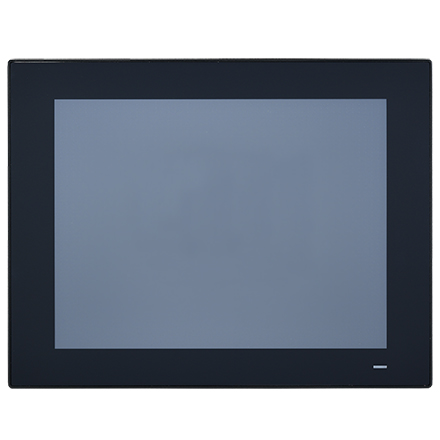

Màn hình cảm ứng PPC-3120-RE9A

  • 12.1″ Fanless Panel PC with Intel® Atom™ E3940 Processor
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng



your-image

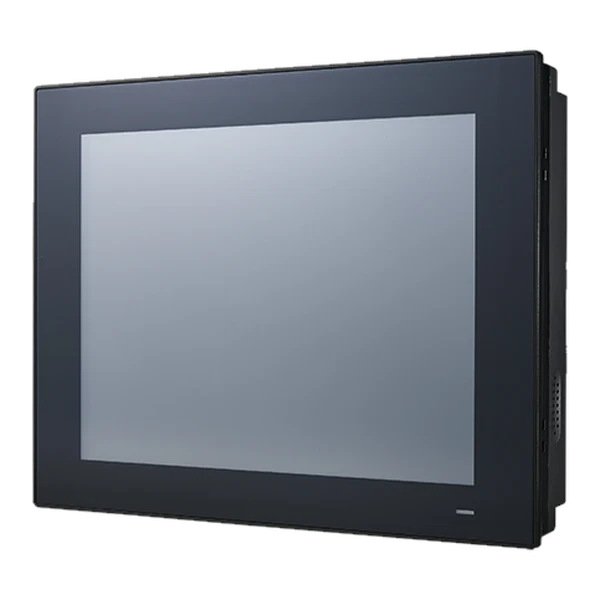

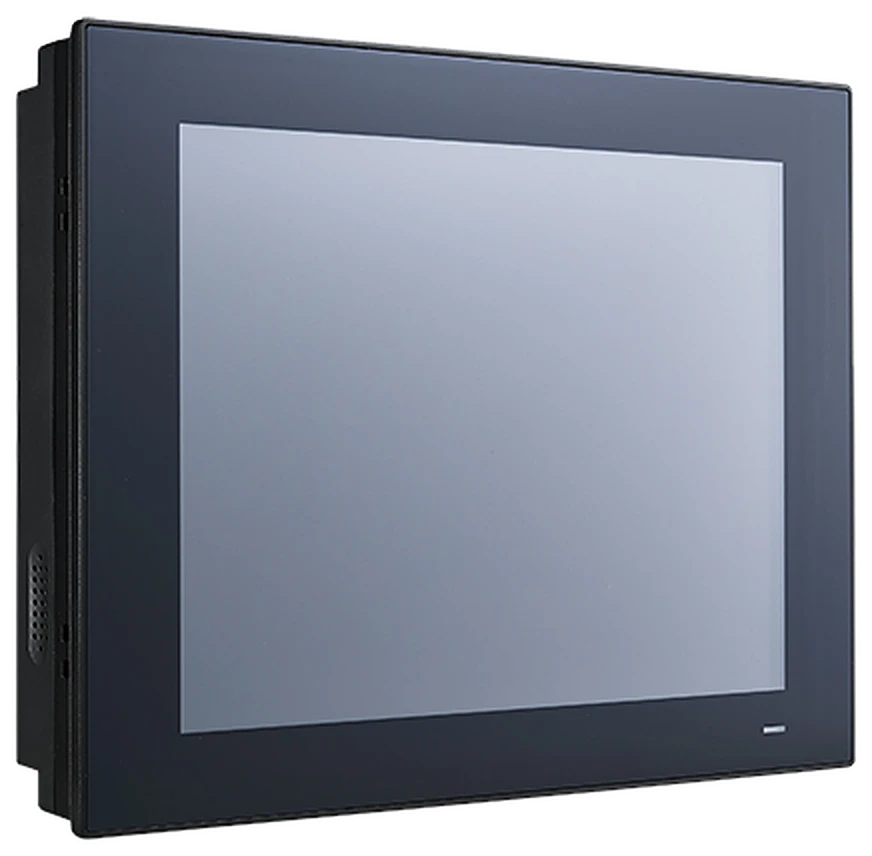

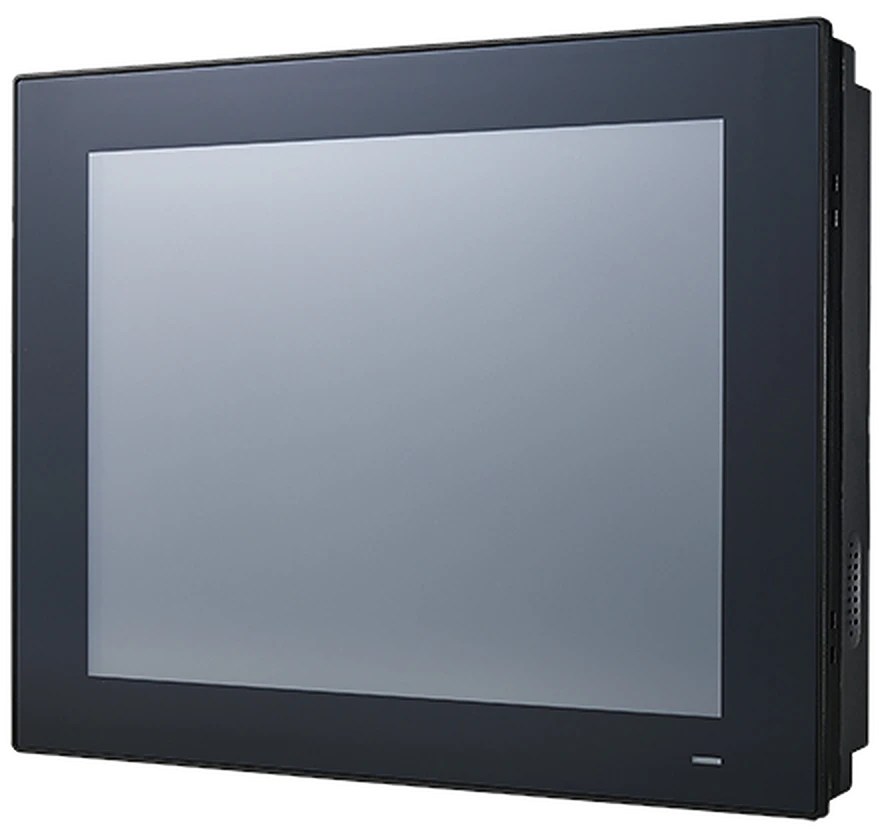

Màn hình cảm ứng PPC-3120-RE9A

Overview

12.1″ Fanless Panel PC with Intel® Atom™ E3940 Processor

máy tính công nghiệp PPC-3120 là máy tính bảng điều khiển không quạt 12,1 “được trang bị bộ xử lý lõi tứ Intel® Atom ™ E3940 hiệu suất cao hỗ trợ dải đầu vào nguồn điện rộng (9 ~ 32 VDC).

Cung cấp nhiều I / O, bao gồm 4 x COM, 4 x USB 3.0, 1 x RS-422/485 cách ly và Intel® Gigabit Ethernet kép, đảm bảo tích hợp và kết nối dễ dàng.

Features

  • 12.1″ XGA TFT LCD with resistive touchscreen
  • Intel® Atom™ E3940, 1.6 GHz, processor
  • Up to 8 GB DDR3L 1866 SDRAM
  • Supports 1 x internal 2.5″ SATA HDD and 1 x mSATA
  • Fanless design with low power consumption
  • Wide range DC support (9 ~ 32 VDC)
  • 1 x isolated RS-422/485 with automatic flow control and dual Intel GbE
  • Optional GPIO (8 channels, TTL level)
  • Optional PCI/PCIe x1 expansion kit

Specifications

Part Number PPC-3120-RE9A
Processor System
CPU
Intel® Atom™ E3940 quad core
2nd Cache Memory
2MB
Frequency
1.6 GHz
Memory
1 x SODIMM DDR3L 1866 MHz (max. 8 GB)
Storage
1 x 2.5″ SATA Bay, 1 x mSATA Bay
Network (LAN)
2 x 10/100/1000 Mbps Ethernet (Intel I210)
I/O Ports
5 x Serial ports: 4 x RS-232, 1 x isolated RS-422/485 (Adjustable through BIOS) ;4 x USB 3.0;1 x Line-out, 1 x Mic-in;1 x VGA;1 x HDMI;1 x GPIO (8 channels, TTL level, internal)
Expansion Slots
1 x Mini PCIe;Optional: 1 x PCIe x1 or 1 x PCI
Speaker
2 x 1W
Watchdog Timer
Watchdog Timer
255 timer levels, set up by software
Physical Characteristics
Dimensions
317 x 246 x 60.5 mm (12.4 x 9.7 x 2.4 in)
Weight
3.4KG
Power Supply
Input Voltage
9 – 32 Vdc
Power Consumption
32W
OS Support
OS Support
Microsoft® Windows 10 IoT Enterprise, Linux, Android 6.0 Marshmallow

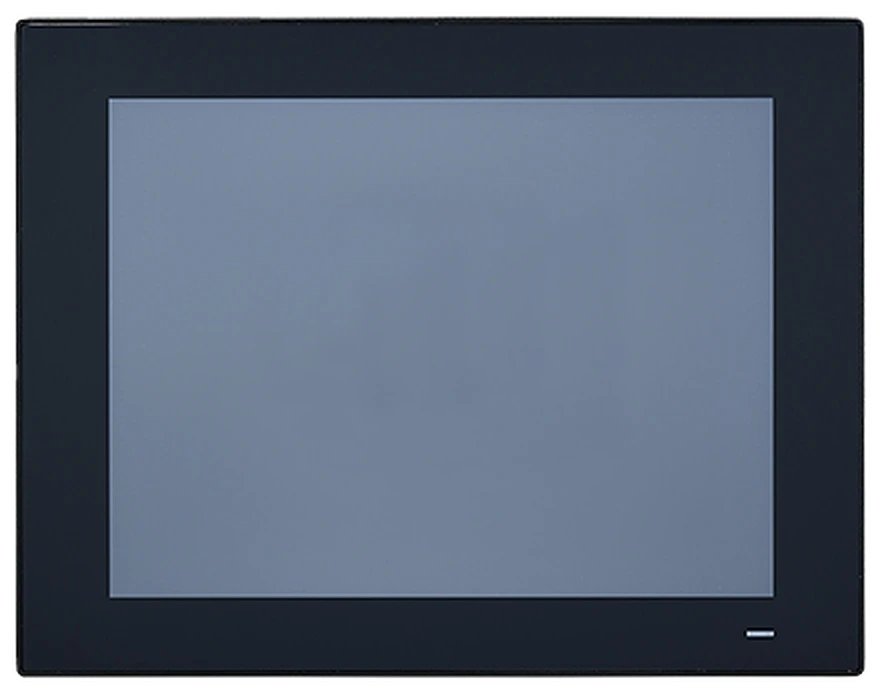

Display
Display Type
12.1″ TFT LCD (LED Backlight)
Max. Resolution
1024 x 768
Viewing Angle
80 (left), 80 (right), 70 (up), 70 (down)
Luminance (cd/m2)
600
Contrast Ratio
700:01:00
Backlight Life (hrs)
50,000 hrs (typical)
Touchscreen
Touch Type
Analog Resistive 5-wire
Light Transmission
80±5% at 550 nm wavelength
Controller
USB interface
Durability (Touches)
Greater than 35 million touches in one location without failure
Environment
Operating Temperature
0 ~ 50° C (32 ~ 122° F)
Storage Temperature
-40 ~ 60°C (-40~140°F)
Relative Humidity
10 ~ 95% @ 40° C (non-condensing)
Shock Protection
Operating 10 G peak acceleration (11 ms duration), follow IEC 60068-2-27
Vibration Protection
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64
EMC
CE, FCC Class B, BSMI
Safety
CB, CCC, BSMI, UL
Front Panel Protection
IP65 Compliant





Chính sách bán hàng

  • Bảo hành 24 tháng
  • Miễn phí vận chuyển toàn quốc
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.

Màn hình cảm ứng PPC-3120-RE9A

Downloads [PPC-3120-RE9A]
