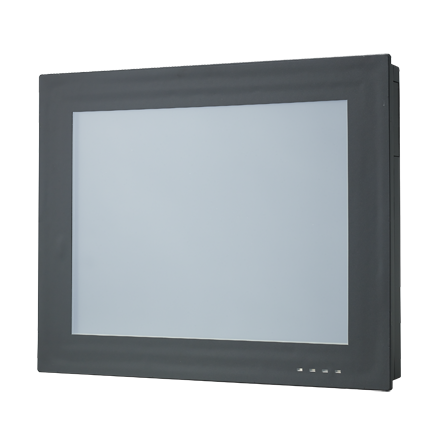

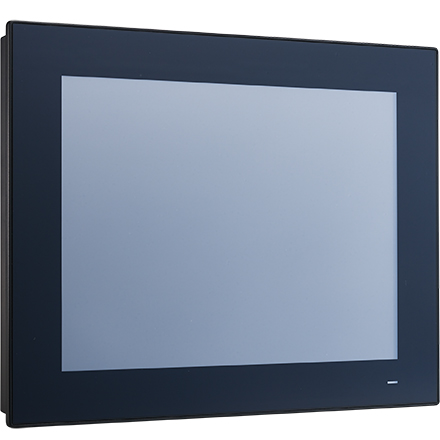

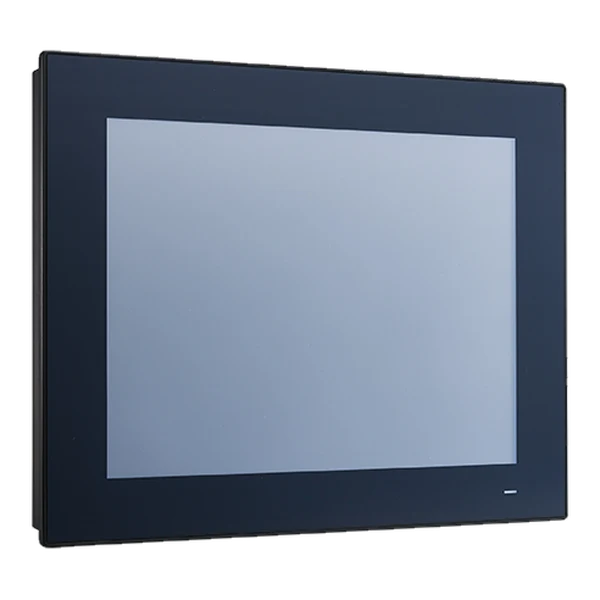

Màn hình cảm ứng PPC-3150
- 15” Fanless Panel PC with Intel Atom E3845 Processor
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
15” Fanless Panel PC with Intel Atom E3845 Processor
PPC-3150 là máy tính bảng điều khiển không quạt 15 inch không chỉ mang lại hiệu suất cao với bộ vi xử lý Atom lõi tứ Intel mà còn hỗ trợ nhiệt độ hoạt động rộng (- 20 ~ 60 ° C) và phạm vi đầu vào điện năng rộng rãi ( 9 ~ 32VDC).
Nó hợp nhất hiệu suất và độ tin cậy trong một hệ thống. Với nhiều I / Os như 4 x COM, 1 x USB3.0, 1x RS-422/485 cách ly và Intel Gigabit Ethernet kép giúp kết nối với các thiết bị dễ dàng hơn và được tích hợp vào ngành chế tạo máy.
Việc mở rộng PCI / PCIe được phép thêm vào bus trường hoặc card độc quyền tạo ra nhiều khả năng ứng dụng hơn.
Part Number |
PPC-3150-RE4AE
|
Processor System
|
|
CPU
|
Intel® Atom™ E3845, Quad core
|
Frequency |
1.91GHz
|
L3 Cache |
2M
|
Memory |
1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB
|
Storage |
1 x 2.5″ SATA Bay, 1 x mSATA Bay
|
Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I210)
|

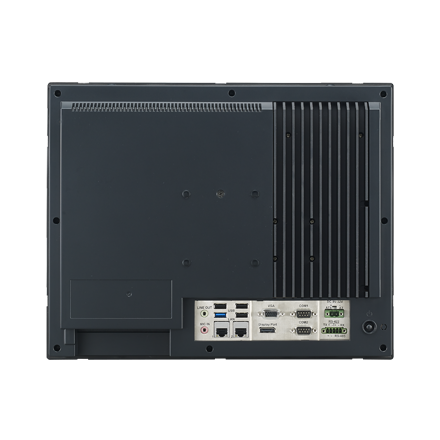

I/O Ports |
1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in
|
Expansion Slots |
1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO
|
Speaker |
2 x 1W
|
Watchdog Timer
|
|
Watchdog Timer
|
255 timer levels, set up by software
|
Physical Characteristics
|
|
Dimensions
|
396.5 x 317.6 x 65.3 (15.6″ x 12.5″ x 2.57″)
|
Weight |
5.3 Kg (11.68 lb)
|
OS Support
|
|
OS Support
|
Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux
|
Power Supply
|
|
Input Voltage
|
9 – 32 Vdc
|
Power Consumption |
30W (Burn-in test 7.0 in Windows 7 32 bit)
|
Display
|
|
Display Type
|
15″ TFT LED Panel
|
Max. Resolution |
1024 x 768
|
Viewing Angle |
80 (left), 80 (right), 70 (up), 70 (down)
|
Luminance (cd/m2) |
400
|
Backlight Life (hrs) |
50, 000 hrs (Min.)
|
Touchscreen
|
|
Touch Type
|
Analog Resistive 5-wire
|
Light Transmission |
80±3%
|
Controller |
USB interface
|
Durability (Touches) |
36 million
|
Environment
|
|
Operating Temperature
|
0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA
|
Storage Temperature |
-40 ~ 60°C (-40~140°F)
|
Relative Humidity |
10 ~ 95% @ 40° C (non-condensing)
|
Shock Protection |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
|
Vibration Protection |
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64
|
EMC |
CE, BSMI, FCC Class A
|
Safety |
CB, CCC, BSMI, UL
|
Front Panel Protection |
IP65 Compliant
|
