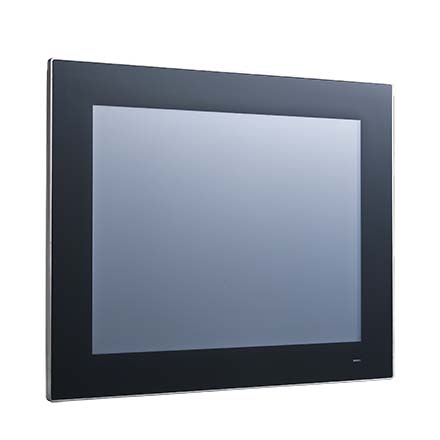

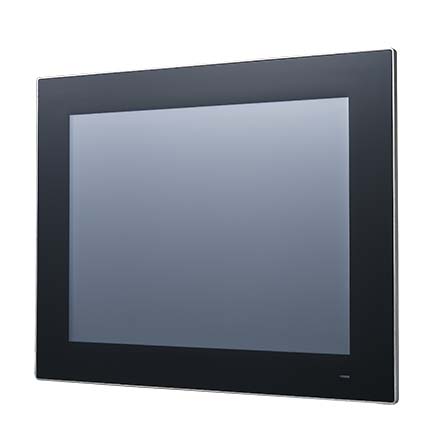

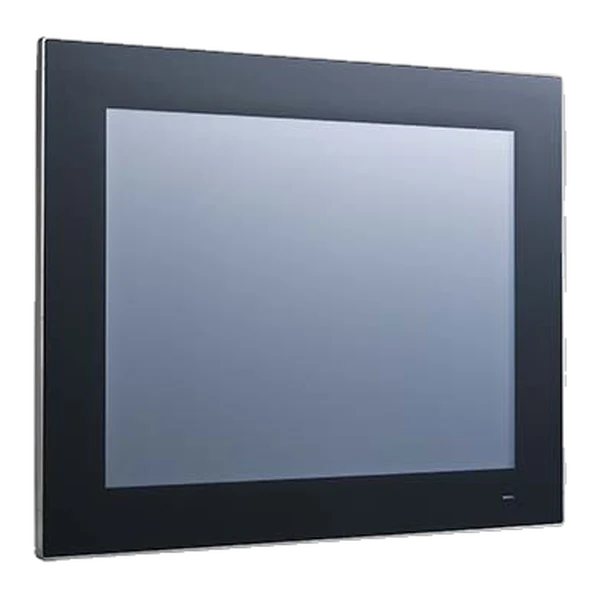

Màn hình cảm ứng PPC-3150S
- 15″ Fanless Panel PC with Intel® Celeron® N2930 Processor
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
15″ Fanless Panel PC with Intel® Celeron® N2930 Processor
Part Number |
PPC-3150S-RAE
|
Processor System
|
|
CPU
|
Intel® Celeron® N2930, Quad core
|
Frequency |
1.83 GHz
|
2nd Cache Memory |
2MB
|
Memory |
1 x SO-DIMM, DDR3L 1333, Max 8 GB
|
Storage 1 |
1 x 2.5″ SATA Bay (Optional, need ordering bracket module for installation);1 x mSATA Bay (default)
|
Network (LAN) |
2 x 10/100/1000 Mbps Ethernet (Intel I211-AT)
|

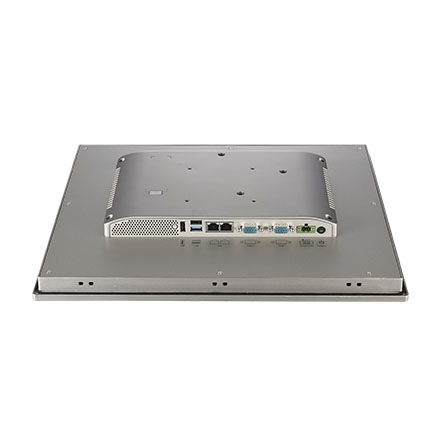

I/O Ports |
2 x Serial ports: 1 x RS-232, 1 x RS-232/422/485(Adjustable through BIOS), 2 x USB 2.0; 1 x USB 3.0
|
Expansion Slots |
1 x Full size Mini PCIe slot
|
Watchdog Timer |
255 timer levels; setup by software
|
Physical Characteristics
|
|
Dimensions
|
391.36 x 312.46 x 51.5mm(15.4″ x 12.3″ x 2.0″)
|
Weight |
4Kg (8.8Ib)
|
OS Support
|
|
OS Support
|
Microsoft Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/WES7/WEC 7/Linux/ Android 4.4
|
Power Supply
|
|
Input Voltage
|
12- 24 Vdc
|
Power Consumption |
20W (Burn-in test 7.0 in Windows 7 32 bit)
|
LCD Display
|
|
Display Type
|
15″ TFT LCD (LED Backlight)
|
Viewing Angle (H/V°) |
80 (left), 80 (right), 70 (up), 70 (down)
|
Max. Resolution |
1024 x 768
|
Luminance (cd/m2) |
400
|
Contrast Ratio |
700:01:00
|
Backlight Life |
50, 000 hrs
|
Touchscreen
|
|
Touch Type
|
Resistive 5 wires
|
Light Transmission |
80±5% at 550 nm wavelength
|
Controller |
RS-232 interface
|
Durability (Touches) |
36 million
|
Environment
|
|
Operating Temperature
|
0 ~ 50°C (32 ~ 122°F) with SSD;0 ~ 40°C (32 ~ 104°F) with HDD (HDD test condition:the SPEC of HDD temperature need more than or equal to 65°C)
|
Storage Temperature |
-40 ~ 60°C (-40~140°F)
|
Relative Humidity |
10 ~ 95% @ 40° C (non-condensing)
|
Shock |
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
|
Vibration |
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD; 2Grms @with SSD, follow IEC 60068-2-64
|
EMC |
CE, FCC Class B, BSMI
|
Safety |
CB, CCC, BSMI, UL
|
Front Panel Protection |
IP65 Compliant
|
