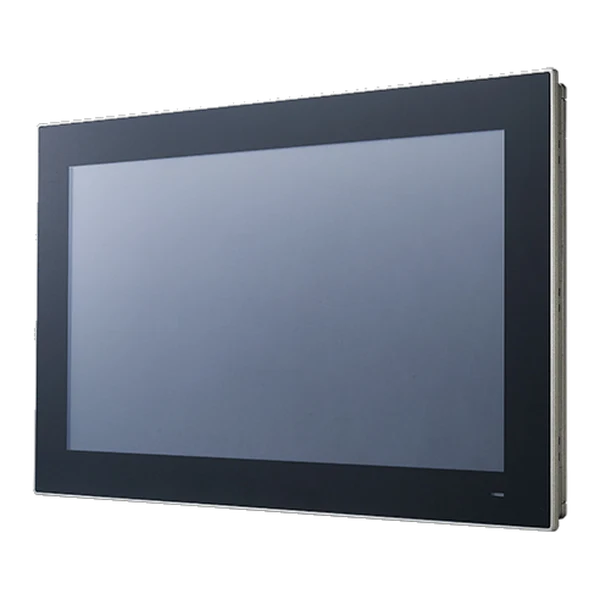

Panel PC công nghiệp PPC-4150W

Mô tả Panel PC công nghiệp PPC-4150W

Panel PC công nghiệp PPC-4150W

Overview

15.6" Fanless Wide Screen Panel PC with Intel Atom D2550 Processor

Features

• 15.6" TFT WXGA LED entirely flat panel with Projected capacitive multi-touch screen
• Fanless design and low power consumption
• Supports one internal SATA 2.5" HDD and 1 x mSATA socket
• PCI or PCIe expansion support
• Adjust RS-232/422/485 through BIOS
• Automatic data flow control over RS-485
• Wide Range DC 12~30V support
• One right side USB port
• Front panel compliant with IP65

Specifications



Part Number	PPC-4150W-P4GAE
Power Supply
Power Consumption	36 W (4 GB DDR3, 2.5" HDD 500G, 4xRS232 loop back, USB2.0x3, mouse ,Windows7 32bit)
Input Voltage	12-30 VDC
LCD Display
Viewing Angle (H/V°)	85 (left), 85 (right), 85 (up), 85 (down)
Luminance (cd/m2)	300
Max. Resolution	1366 x 768
Max. Colors	16.7 M
Display Type	15.6" TFT LCD (LED Backlight)
Brightness Control	Yes
Backlight Lifetime	50, 000 hrs
Environment
Relative Humidity	10 ~ 95% @ 40° C (non-condensing)
Operating Temperature	0 ~ 50°C (32 ~ 122°F)
Storage Temperature	-20 ~ 60°C (-4 ~ 140°F)
Front Panel Protection	IP65 Compliant
Processor System
Memory	SODIMM x 1, DDR3 1066, 4 GB DDR3 pre-installed
Storage	mSATA*1
Bus Expansion	1 x MINI PCIe, 1 x PCIex1 or 1 x PCI
HDD	1 x 2.5" SATA HDD Bay (Internal)
Weight	5.5Kg
Dimensions (W x H x D)	419.7 x 269 x 59 mm
2nd Cache Memory	1 MB
Network (LAN)	1 x 10/100/1000Mbps Ethernet
Watchdog Timer	255 timer levels; setup by software
CPU	Intel Atom D2550 1.86GHz 10W Dual Core CPU on board
Touchscreen
Light Transmission	88%±2%
Controller	USB interface
Touch Type	Projected capacitive multi-touch 10 points
OS Support
OS Support	Win XPE / WES7 / WIN CE7.0 / Linux
