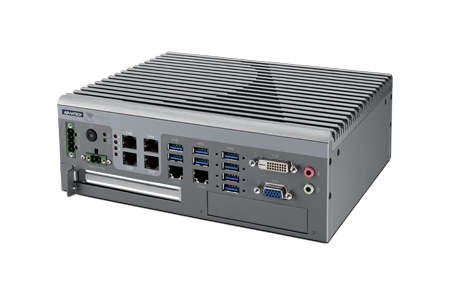

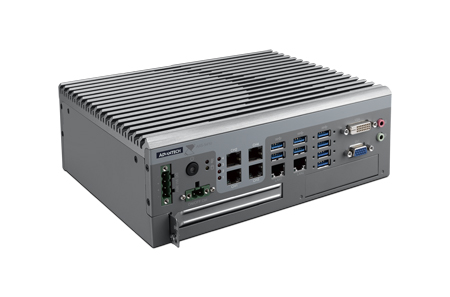

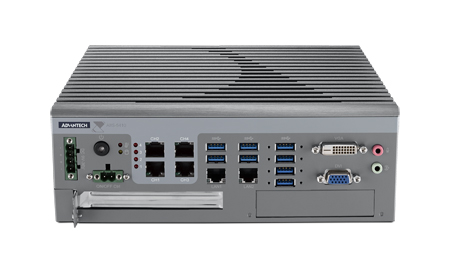

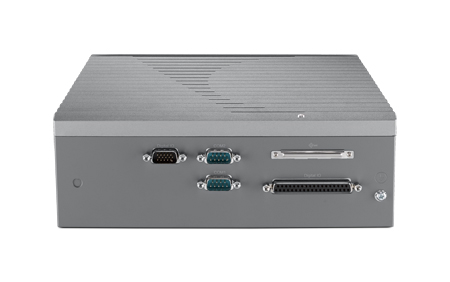

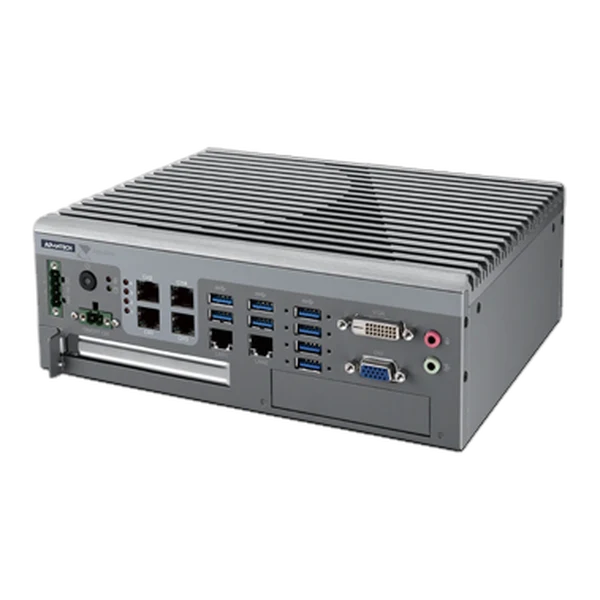

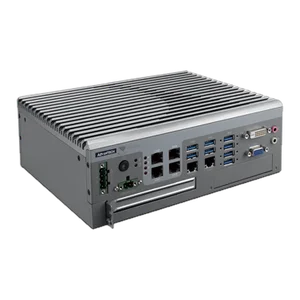

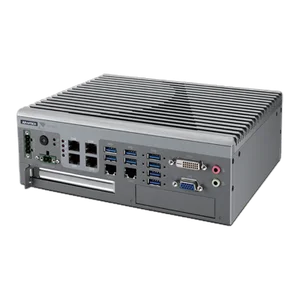

Máy tính công nghiệp không quạt AIIS-5410P
Fanless Vision System with Intel® Core™ i Processor, 4-Channel GigE PoE Camera Interface, and PCIe Slot
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng
Máy tính công nghiệp không quạt AIIS-5410P
Fanless Vision System with Intel® Core™ i Processor, 4-Channel GigE PoE Camera Interface, and PCIe Slot
Part Number | AIIS-5410P-S9A1E | AIIS-5410P-U0A1E |
Camera Interface
|
||
Ports | 4 | 4 |
Technology | PoE | PoE |
Environment | ||
Operating Vibration | 1Grms (with HDD), 3Grms (with SSD) | 1Grms (with HDD), 3Grms (with SSD) |
Operational Temperature | SSD : -20 ~ 60° C with 0.7m/S air flow ; With HDD :20 ~ 60° C with 0.7m/S air flow; HDD :0 ~ 40° C with 0.7m/S air flow ; With HDD :20 ~ 60° C with 0.7m/S air flow | SSD : -20 ~ 60° C with 0.7m/S air flow ; With HDD :20 ~ 60° C with 0.7m/S air flow; HDD :0 ~ 40° C with 0.7m/S air flow ; With HDD :20 ~ 60° C with 0.7m/S air flow |
Ethernet | ||
Controller | Intel i210AT | Intel i210AT |
Expansions | ||
Mini-PCIe | 1 | 1 |
PCIe x8 | 1 | 1 |
Front I/O Interface | ||
Audio | 2 (Min-in, Line-out) | 2 (Min-in, Line-out) |
Display | 1 VGA + 1 DVI | 1 VGA + 1 DVI |
USB3.0 | 8 | 8 |
Graphics | ||
Chipset Integrated | Intel HD Graphic 530, support DirectX12 | Intel HD Graphic 530, support DirectX12 |
Memory | ||
Max. Capacity | 32GB (Up to 16GB each) | 32GB (Up to 16GB each) |
Socket | 2 x 260-pin SO-DIMM | 2 x 260-pin SO-DIMM |
Technology | DDR4 2133/1866 MHz | DDR4 2133/1866 MHz |
Miscellaneous | ||
Control | Power on/off switch | Power on/off switch |
LED Indicators | Power, HDD, Temperature, PoE LED | Power, HDD, Temperature, PoE LED |
Physical Characteristics | ||
Dimensions (W x H x D) | 235x88x188mm | 235x88x188mm |
Weight | 2.9kg (6,39lbs) | 2.9kg (6,39lbs) |
Power Requirement | ||
Input Voltage | 9 – 36VDC | 9 – 36VDC |
Power Type | AT/ATX | AT/ATX |
Processor System | ||
BIOS | AMI 64 Mb SPI Flash | AMI 64 Mb SPI Flash |
Chipset | QM170 | QM170 |
CPU | i5-6442EQ | i7-6822EQ |
Frequency | 1.9GHz | 2.0 GHz |
L3 Cache | 6 MB | 8 MB |
Rear I/O Interface | ||
GPIO | 8bit | 8bit |
Series port | 2 | 2 |
Storage | ||
CFast | 1 | 1 |
HDD | 2 x 2.5′ HDD Bay | 2 x 2.5′ HDD Bay |
m-SATA | 1 | |
WatchDog Timer | ||
Interval | Programmable 1 ~ 255 sec/min | Programmable 1 ~ 255 sec/min |
Output | System Reset | System Reset |
