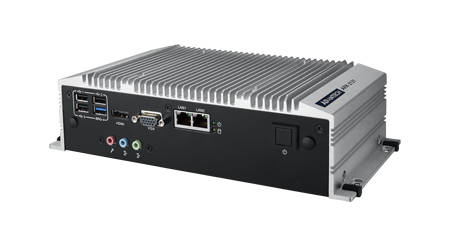

Máy tính công nghiệp không quạt ARK-2121L

Click lấy báo giá tại đây!

Máy tính công nghiệp không quạt ARK-2121L

  • Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng
your-image

Máy tính công nghiệp không quạt ARK-2121L

Overview

Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

Intel® Celeron® Quad Core J1900 SoC with Multiple I/Os Fanless Box PC

Features

  • Intel® Celeron® J1900 Quad Core 2.0 GHz SoC with Turbo boost support
  • VGA and HDMI dual independent display
  • 9 ~ 36 VDC wide range power input
  • -20 ~ 70° C extend temperature operating
  • Mini PCIe expansion with SIM holder for communication module
  • mSATA and 1 x 2.5″ SATA storage device
  • Advantech iDoor module compatible
  • Advantech EMIO miniPCIe module compatible with all-in-one ordering

Specifications [ARK-2121L]

Part Number
ARK-2121L-U0A1E
Processor
CPU
Intel Celeron Processor J1900 Quad Core
Core Number
4
Frequency
2.0 GHz, turbo boost up to 2.42 GHz
L2 Cache
2 MB
BIOS
AMI EFI
Memory
Technology
DDR3L 1333 MHz
Max. Capacity
8 GB
Socket
1 x 204-pin SO-DIMM
Graphics
Chipset
Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core
Graphic Engine
DirectX 11.1, OCL 1.2, OGL 3.2; Encode: H.264, MPEG2/4, VC1, WMV9; Decode: H.264, MPEG2
VGA
Up to 2048 x 1152 @ 60Hz
HDMI
HDMI 1.4a for HD video playback, 1080P at 60Hz
Display port
Up to 2048 x 1152 at 60Hz(by projuct only)
Dual Display
Yes, VGA + HDMI
Ethernet
LAN1
10/100/1000 Mbps Intel i210 GbE, support Wake On Lan
LAN2
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
Audio
Interface
Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in
I/O Interface
Serial Port
2 x RS-232 ports, 2 x RS-232/422/485 port with auto flow control
USB Interface
1 x USB 3.0, 3 x USB 2.0
Other
Watchdog Timer
255 levels timer interval, setup by software
Expansion
Mini PCIe
1 x full size Mini PCIe with SIM holder
Storage
HDD
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
SSD
1 x full size mSATA socket, with USB signal co-lay
Software Support
Microsoft Windows
WES8, Windows 8, WES7, Windows 7
Linux
Support by project
Power
Power Type
ATX
Input Voltage
9 ~ 36 VDC
Power Adaptor
AC to DC, DC19 V/3.42 A, 65 W (Optional)
Consumption
Typical 7.3 W, Max. 13.3 W
Mechanical
Construction
Aluminum housing
Mounting
Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions
264.5 x 68.4 x 133.0 mm (10.41″ x 2.69″ x 5.24″)
Weight
2.3 kg (5.07 lb)
Environment
Operating Temperature
With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow;With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
Storage Temperature
-40 ~ 85° C (-40 ~ 185° F)
Relative Humidity
95% @ 40° C (non-condensing)
Vibration during Operation
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
Shock During Operation
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
EMC
CE/FCC Class A, CCC, BSMI
Safety Certifications
UL, CCC, BSMI



Chính sách bán hàng

  • Bảo hành 24 tháng
  • Miễn phí vận chuyển toàn quốc
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.

Máy tính công nghiệp không quạt ARK-2121L

Downloads [ARK-2121L]
