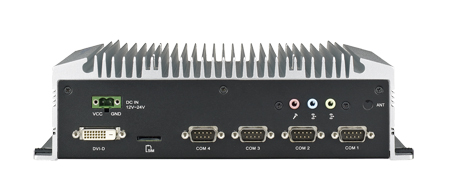

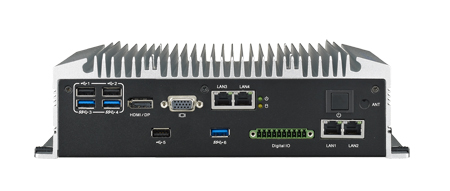

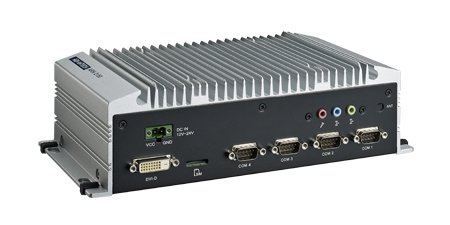

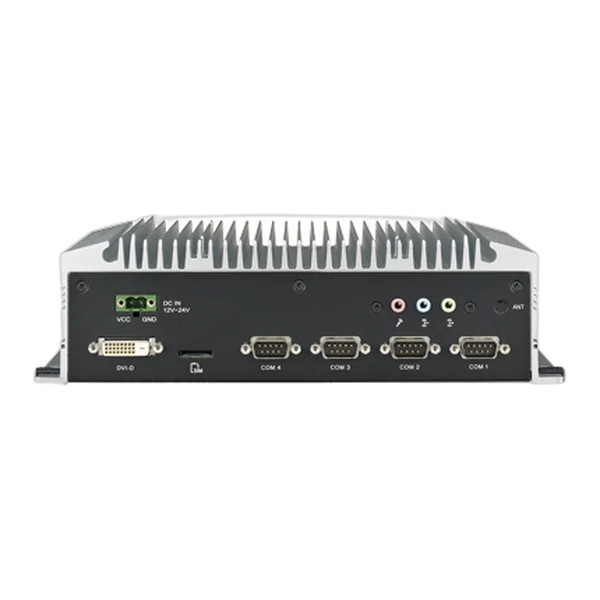

Máy tính công nghiệp không quạt ARK-2150F

Overview

3rd Generation Intel® Core™ i7 with 4 x GbE, Isolated DIO & wide range power Fanless Box PC

Features

Intel® Core™ i7 processors + Intel QM77 PCH
1 x DDR3/DDR3L SO-DIMM, support up to 8 GB
DirectX11, OpenGL3.1, OpenCL1.1
Supports Intel AMT8.0
Supports 4 x Intel GbE
Support 4ch digital input and 4ch digital output with 2.5KV isolation
Supports 3 x USB 3.0, 3 x USB 2.0, 4 COMs ports
Supports 1 x internal mSATA socket and 1 x 2.5″ SATA HDD Bay
12~24V wide range DC input with lockable connector
Supports iManager, SUSIAccess and Embedded Software APIs

Specifications [ARK-2150F]

Part Number	ARK-2150F-S7A1E
Processor
CPU	Intel ULV 3rd Gen Core i7 3517UE
Core Number	2
Frequency	Dual Core 1.7 GHz (Max Turbo Frequency 2.8 GHz)
L3 Cache	4 MB
Chipset	Intel QM77
BIOS	AMI EFI 64Mbit
Memory
Technology	DDR3 1600MHz, DDR3L 1333 MHz
Max. Capacity	8 GB
Socket	1 x 204-pin SODIMM
Graphics
Chipset	Intel QM77 Integrated GFX Gen 7
Graphic Engine	DirectX11, OpenGL 3.1, and Open CL 11; Hardware decode acceleration: AVC/H.264, MPEG-2, VC-1
VGA	Integrated 340.4MHz RAMDAC, Max resolution up to 2048 x 1536 @ 75Hz
HDMI	Supports HDMI 1.4 for HD Video playback (no hotplug support); Max resolution up to 2560 x 1600 @ 60Hz on DisplayPort, Max resolution up to 1920 x 1200 @ 60Hz on HDMI
DVI-D	Max resolution up to 1920 x 1200
Dual Display	Yes, VGA+HDMI/DisplayPort, VGA+HDMI/DVI-D, VGA+DVI-D, HDMI/DisplayPort+DVI-D
Ethernet
LAN1	10/100/1000 Mbps Intel 82579LM GbE, support Wake On Lan
LAN2/LAN3/LAN4	10/100/1000 Mbps Intel 82583V GbE
Audio
Interface	Realtek ALC892, High Definition Audio. Line-out,Mic-in, Line-in
I/O Interface
Serial Port	4 x RS-232/422/485 port with auto flow control
USB Interface	3 x USB 3.0 ports and 3 x USB 2.0 ports
Other
Digital IO	4ch digital input and 4ch digital output with 2.5KV isolation
Watchdog Timer	255 levels timer interval, setup by software
Expansion
Mini PCIe	2 x Full-size Mini PCIe (Supports mSATA & SIM); 1 x Half-size Mini PCIe
Storage
HDD	Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)
SSD	Supports one internal mSATA socket
Software Support
Microsoft Windows	Windows 7, Windows 7 Embedded, XP Professional, XP Embedded
Linux	Ubuntu 12.04
Power
Power Type	AT/ATX
Input Voltage	12 ~ 24 VDC
Power Adaptor	AC to DC, DC19 V/3.42 A, 65 W (Optional)
Consumption	Typical 10.3 Watt, Max. 25.7 Watt
Mechanical
Construction	Aluminum housing
Mounting	Din-Rail mounting, Desk/wall-mounting, VESA mounting
Dimensions	264.5 x 75.1 x 133.0 mm (10.41″ x 2.96″ x 5.24″)
Weight	2.8kg (6.17lb)
Environment
Operational Temperature	With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow; With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
Storage Temperature	-40 ~ 85° C (-40 ~ 185° F)
Relative Humidity	95% @ 40° C (non-condensing)
Vibration during Operation	With SSD: 5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.
Shock During Operation	With SSD: 50 G, IEC 60068-2-27, half sine, 11 ms duration
Certification
EMC	CE, FCC Class A, CCC, BSMI
Safety Certifications	UL, CCC, BSMI
