Máy tính công nghiệp không quạt ARK-2250L
- Intel 6th Generation Core™ i3/i5/i7 Modular Fanless Box PC
- Hoạt động liên tục 24/7
- Bảo hành 24 tháng

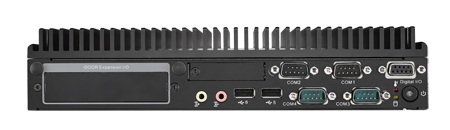

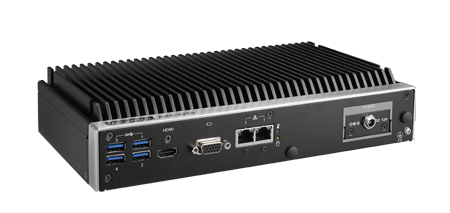

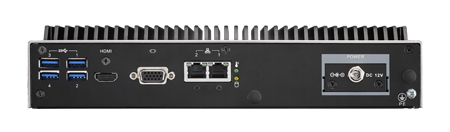

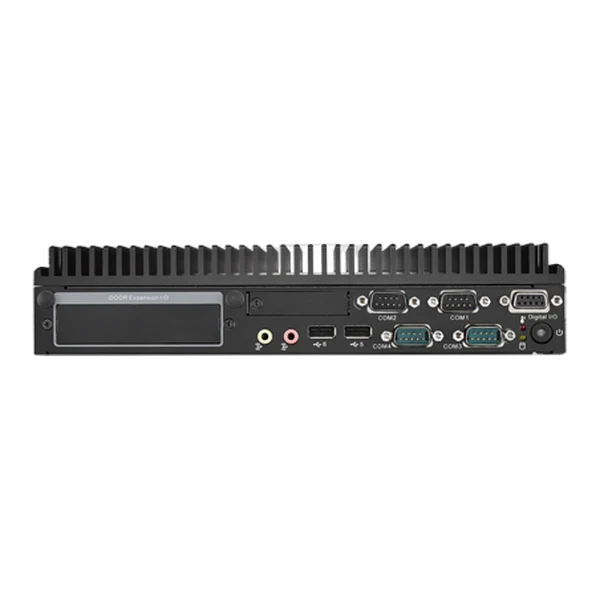

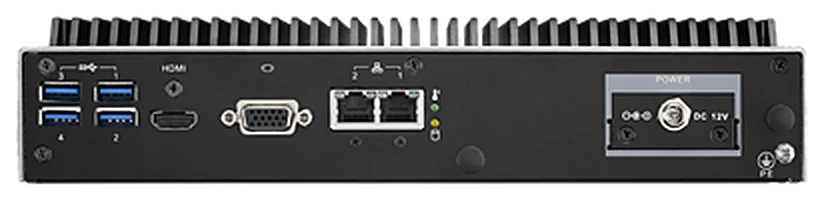

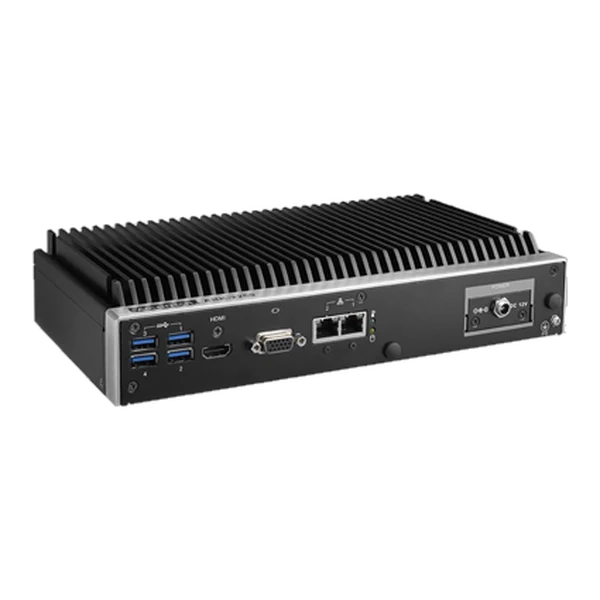

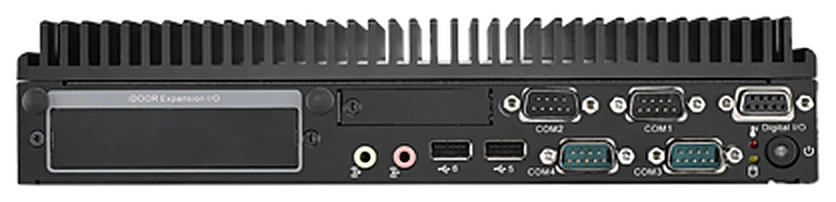

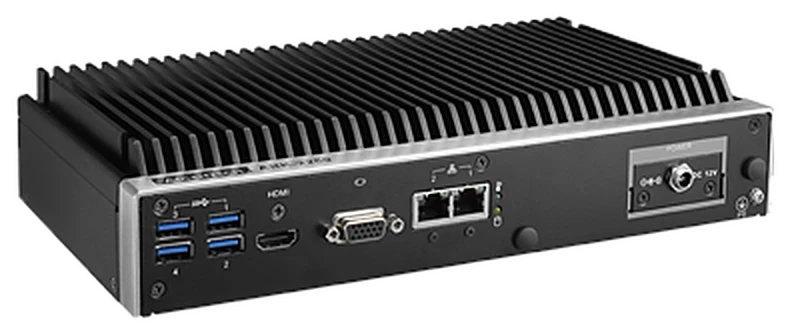

Máy tính công nghiệp không quạt ARK-2250L
Máy tính công nghiệp không quạt ARK-2250L
Overview
Intel 6th Generation Core™ i3/i5/i7 Modular Fanless Box PC
Features
- Intel 6th Gen Intel® Core™ U-series (i3/i5/i7)
- VGA and HDMI dual display, option 3rd display for triple display
- 12V lockable DC jack power input
- 9-36V power module compatible with all-in-one ordering
- -20 ~ 60 °C extend temperature operating
- 2 x full size mPCIe expansion for WIFI/Cellular communication module
- 1 x full size mSATA and 1 x 2.5″ SATA storage device
- Advantech iDoor module compatible
- Advantech ARK Plus module support by dual layer configurations
Specifications [ARK-2250L]
| Part Number | ARK-2250L-U3A1E | ARK-2250L-U6A1E |
| Processor | ||
|
CPU
|
Intel Core i3 6100U
|
Intel Core i7 6600U |
| Core Number |
2
|
2
|
| Frequency |
2.3 GHz
|
2.6 GHz |
| L3 Cache |
3 MB
|
4 MB |
| BIOS |
AMI UEFI 128 Mbit
|
AMI UEFI 128 Mbit
|
|
Memory
|
||
|
Technology
|
DDR3L 1600 MHz
|
DDR3L 1600 MHz
|
| Max. Capacity |
16 GB
|
16 GB
|
| Socket |
1 x 204-pin SO-DIMM
|
1 x 204-pin SO-DIMM
|
|
Graphics
|
||
|
Controller
|
Intel HD Graphics 520
|
Intel HD Graphics 520
|
| Graphic Engine |
DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode
|
DirectX 11.3, OpenGL 4.4, and OpenCL 2.1, Full AVC/VC1/MPEG2 HW Decode
|
| VGA |
Up to 1920 x 1200 @ 60Hz (No hotplug support)
|
Up to 1920 x 1200 @ 60Hz (No hotplug support)
|
| HDMI |
HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz
|
HDMI 1.4a for HD video playback, 4096 x 2160 @ 24Hz
|
| Dual Display |
Yes, VGA + HDMI
|
Yes, VGA + HDMI
|
| Triple Display |
VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China)
|
VGA+HDMI+Optional display module: HDMI, DP and DVI-D (DVI-D only for China)
|
|
Ethernet
|
||
|
LAN1
|
10/100/1000 Mbps Intel i219 GbE, support Wake On Lan
|
10/100/1000 Mbps Intel i219 GbE, support Wake On Lan |
| LAN2 |
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN
|
10/100/1000 Mbps Intel I210 GbE, support Wake on LAN |
|
Audio
|
||
|
Interface
|
Realtek ALC888S, High Definition Audio, Line-out, Mic-in
|
Realtek ALC888S, High Definition Audio, Line-out, Mic-in |
|
I/O
|
||
|
Serial port
|
4 x RS-232/422/485 port, support auto-flow control
|
4 x RS-232/422/485 port, support auto-flow control |
| USB |
4 x USB 3.0, 2 x USB 2.0
|
4 x USB 3.0, 2 x USB 2.0 |
| Digital I/O |
8bit
|
8bit |
|
Others
|
||
|
Watchdog timer
|
255 levels timer interval, setup by software
|
255 levels timer interval, setup by software |
|
Expansion
|
||
|
Mini PCIe
|
2 x full size Mini PCIe with (CN15 with SIM holder)
|
2 x full size Mini PCIe with (CN15 with SIM holder) |
| iDoor Module |
1 set (Optional)
|
1 set (Optional) |
|
Storage
|
||
|
HDD
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s)
|
Supports one SATA 2.5″ HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 300 MB/s) |
| SSD |
1 x full size mSATA socket (CN15, shared with mPCIe)
|
1 x full size mSATA socket (CN15, shared with mPCIe) |
|
Software Support
|
||
|
Microsoft Windows
|
Windows 10, Windows 8.1, WES7, Windows 7
|
Windows 10, Windows 8.1, WES7, Windows 7 |
| Linux |
Support by project
|
Support by project |
|
Power
|
||
|
Power Type
|
ATX
|
ATX
|
| Input Voltage |
12 VDC (9 ~ 36 VDC as option)
|
12 VDC (9 ~ 36 VDC as option) |
| Power Adaptor |
AC to DC, DC12V/5A, 60 W (Optional)
|
AC to DC, DC12V/5A, 60 W (Optional)
|
| Consumption |
Typical 6.92 W, Max. 41.72 W
|
Typical 7.96 W, Max. 43.28 W |
|
Mechanical
|
||
|
Construction
|
Aluminum housing
|
Aluminum housing
|
| Mounting |
Din-Rail mounting, Desk/wall-mounting, VESA mounting
|
Din-Rail mounting, Desk/wall-mounting, VESA mounting |
| Dimensions |
260 x 54 x 140.2 mm (10.24″ x 2.13″ x 5.52″)
|
260 x 54 x 140.2 mm (10.24″ x 2.13″ x 5.52″) |
| Weight |
2.3 kg (5.07 lb)
|
2.3 kg (5.07 lb) |
|
Environment
|
||
|
Operational Temperature
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow
|
With extended temperature peripherals: -20 ~ 60° C (-4 ~ 140° F) with 0.7m/s air flow With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow |
| Storage Temperature |
-40 ~ 85° C (-40 ~ 185° F)
|
-40 ~ 85° C (-40 ~ 185° F)
|
| Relative Humidity |
95% @ 40° C (non-condensing)
|
95% @ 40° C (non-condensing) |
| Vibration during Operation |
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
|
With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis |
| Shock During Operation |
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration
|
With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration |
|
Certification
|
||
|
EMC
|
CE/FCC Class B, CCC, BSMI
|
CE/FCC Class B, CCC, BSMI |
| Safety Certifications |
UL, CCC, BSMI
|
UL, CCC, BSMI |
