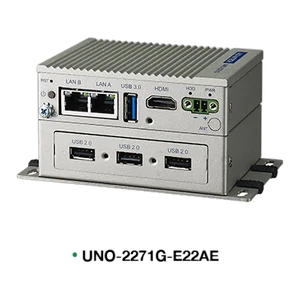

Máy tính công nghiệp không quạt UNO-2271G

  • Intel® Atom™ Pocket-Size Smart Factory Edge Gateway with 2 x GbE, 1 x mPCIe, HDMI, eMMC
  • Hoạt độ liê tục 24/7
  • Bảo hành 24 tháng
your-image

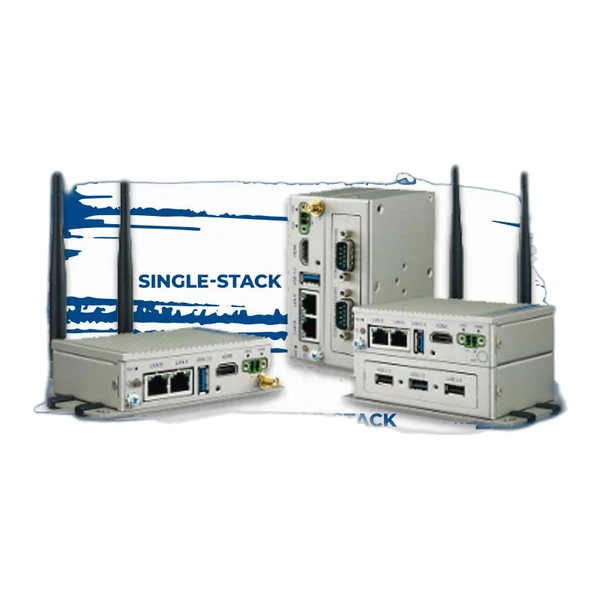

Máy tính công nghiệp không quạt UNO-2271G

Overview

Intel® Atom™ Pocket-Size Smart Factory Edge Gateway with 2 x GbE, 1 x mPCIe, HDMI, eMMC

Dòng máy tính tự động nhúng UNO-2000 thế hệ mới của Advantech có thiết kế mô-đun, không quạt và có độ bền cao.

Dòng UNO-2000 mới bao gồm các hệ số dạng bỏ túi, nhỏ và kích thước thông thường cho các loại ứng dụng nhà máy thông minh khác nhau như Kết nối thiết bị (EC).

Trực quan hóa quy trình (PV), Quản lý môi trường (EM) và Quản lý công văn (DM) Thiết kế mô-đun của UNO- 2271G có tính năng I / O được tối ưu hóa và cung cấp ba cấu hình khác nhau.

Nó cũng hỗ trợ công nghệ iDoor của Advantech thông qua ngăn xếp mở rộng thứ hai. Dòng UNO-2000 cung cấp hỗ trợ linh hoạt và theo thời gian cho nhiều ứng dụng khác nhau.

Features

  • Intel® Atom™ E3815 Processor with 4GB DDR3L onboard Memory
  • 2 x GbE, 1 x USB 3.0, 1 x HDMI, Option 2 x RS-232/422/485 or 3 x USB2.0
  • Compact Fanless Design
  • Rubber Stopper Design with internal reserved screws for 2nd layer assembly
  • Diverse system I/O and Isolated Digital I/O by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
  • Supports 30+ iDOOR combination with four main categories of smart factory application
  • Built-in 32GB eMMC storage onboard
may-tinh-cong-nghiep-UNO-2271G
Máy tính công nghiệp UNO-2271G

Specifications [UNO-2271G]

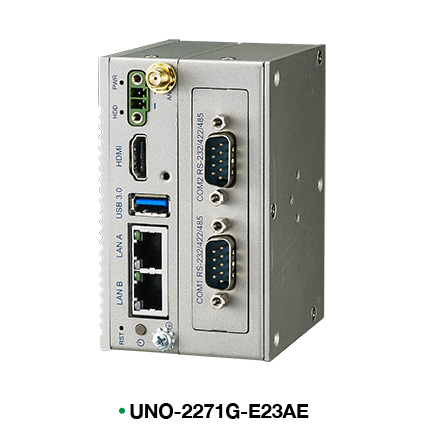

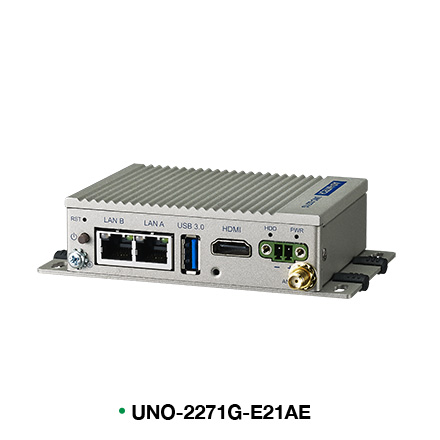

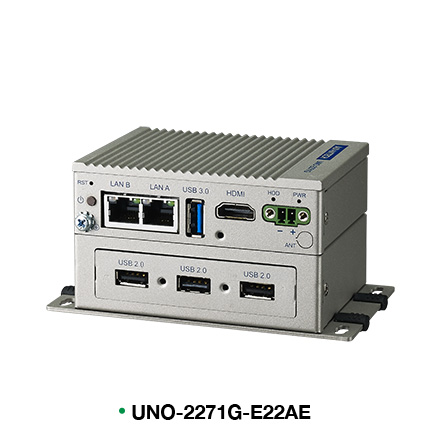

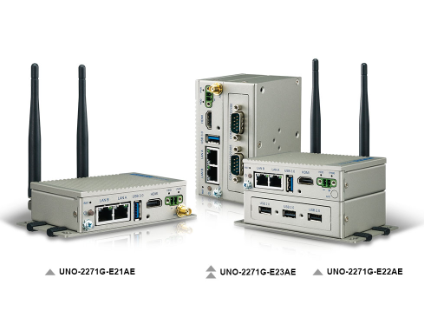

Part Number UNO-2271G-E21AE UNO-2271G-E22AE UNO-2271G-E23AE
Environment
Ingress Protection
IP30
IP30 IP30
Vibration Protection
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA) Operating, IEC 60068-2-64, 2Grms, random, 5 ~ 500Hz, 1hr/axis (mSATA)
Relative Humidity 10 ~ 95% RH @ 40°C, non-condensing 10 ~ 95% RH @ 40°C, non-condensing 10 ~ 95% RH @ 40°C, non-condensing
Shock Protection
Operating, IEC 60068-2-27, 50G, half sine, 11ms
Operating, IEC 60068-2-27, 50G, half sine, 11ms Operating, IEC 60068-2-27, 50G, half sine, 11ms
Storage Temperature
– 20 ~ 70°C ( -4 ~ 158°F)
– 20 ~ 70°C ( -4 ~ 158°F)
– 20 ~ 70°C ( -4 ~ 158°F)
Operating Temperature
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
0 ~ 50°C (32 ~ 122°F) @ 5 ~ 85% RH with 0.7 m/s airflow
I/O Interface
Displays
1 x HDMI, supports 1920 x 1080 @ 60Hz
1 x HDMI, supports 1920 x 1080 @ 60Hz
1 x HDMI, supports 1920 x 1080 @ 60Hz
Power Connector
1x 2 Pins, Terminal Block
1x 2 Pins, Terminal Block
1x 2 Pins, Terminal Block
USB Port
1 x USB 3.0
3 x USB 2.0 and 1 x USB 3.0 1 x USB 3.0
LAN Ports
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
2 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Serial Ports
N/A
N/A
2 x RS 232/422/485
System Hardware
Expansion
2 Full-size mPCIe
2 Full-size mPCIe
2 Full-size mPCIe
LED Indicators
LEDs for Power, HDD, LAN (Active,Status)
LEDs for Power, HDD, LAN (Active,Status)
LEDs for Power, HDD, LAN (Active,Status)
Storage
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
Onboard 32GB eMMC (Option mSATA shared with mPCIe slot)
Ethernet
Realtek RTL8111E GbE, 802.10av
Realtek RTL8111E GbE, 802.10av
Realtek RTL8111E GbE, 802.10av
Graphics Engine
Intel® HD Graphics
Intel® HD Graphics
Intel® HD Graphics
Memory
Onboard 4GB DDR3L 1066 MHz
Onboard 4GB DDR3L 1066 MHz
Onboard 4GB DDR3L 1066 MHz
Processor
Intel Atom E3815 1.46GHz (E3825 support by project)
Intel Atom E3815 1.46GHz (E3825 support by project)
Intel Atom E3815 1.46GHz (E3825 support by project)
System Chip
Integrated Intel SoC Chipset
Integrated Intel SoC Chipset
Integrated Intel SoC Chipset
Watchdog Timer
Programmable 256 levels timer interval, from 1 to 255 sec
Programmable 256 levels timer interval, from 1 to 255 sec
Programmable 256 levels timer interval, from 1 to 255 sec
BIOS
AMI EFI64 Mbit
AMI EFI64 Mbit
AMI EFI64 Mbit
General
OS Support
For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux
For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux For mSATA storage: Windows7, Windows10 LTSB, Advantech Linux. For eMMC storage: Advantech embedded customized Windows7 64bits, Windows 10 LTSB, Advantech Linux
Power Requirement
10 ~ 30 VDC
10 ~ 30 VDC
10 ~ 30 VDC
Power Consumption
12W (Typical), 24W (Max)
12W (Typical), 24W (Max)
12W (Typical), 24W (Max)
Weight
0.5 kg
0.6 kg 0.6 kg
Enclosure
Aluminum Housing
Aluminum Housing
Aluminum Housing
Form factor
Pocket Size
Micro Size Micro Size
Mounting
Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)
Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional) Stand, Wall, VESA (Optional), DIN-rail (Optional), Pole (Optional)
Dimensions
100 x 70 x 30 mm
100 x 70 x 65 mm 100 x 70 x 65 mm
Certifications
CE, FCC, UL, CCC, BSMI
CE, FCC, UL, CCC, BSMI
CE, FCC, UL, CCC, BSMI
