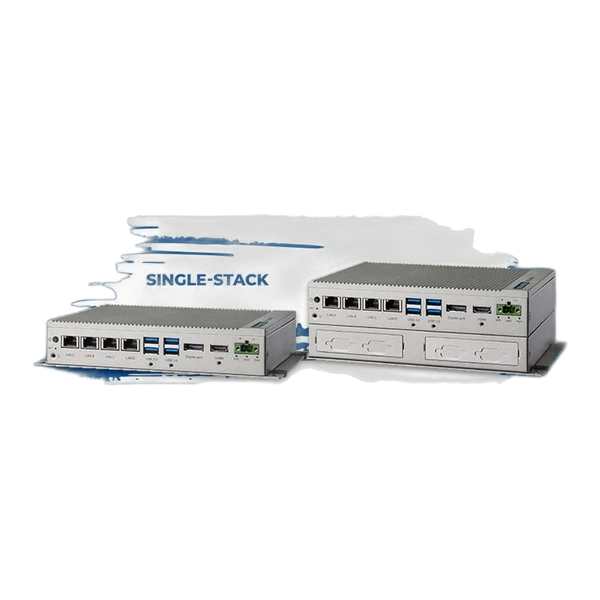

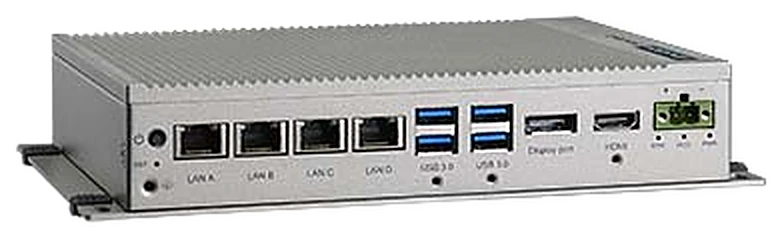

Máy tính công nghiệp không quạt UNO-2484G

  • Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4 x GbE, 1 x mPCIe, HDMI, DP
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng
Mã: UNO-2484G Danh mục: Từ khóa: ,
your-image

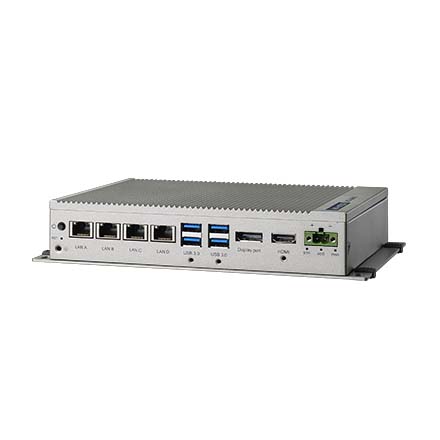

Máy tính công nghiệp không quạt UNO-2484G

Overview

Intel® Core™ i7/i5/i3 Regular-Size Modular Box Platform (MBP) with 4 x GbE, 1 x mPCIe, HDMI, DP

Features

  • Intel® Core™ i7/i5/i3 Processor with 8GB DDR4 built-in Memory

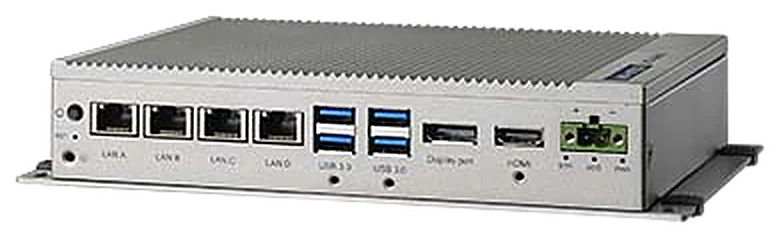

  • 4 x GbE, 4 x USB 3.0, 1 x HDMI, 1 x DP (4K), 4 x RS232/422/485
  • Stackable 2nd layer for up to 4 iDoor extension or customize for domain applications
  • Compact Fanless Design
  • Ruggedized by zero cable and lockable I/O design
  • Dedicated TPM2.0 microcontroller designed for hardware security
  • Diverse system I/O and Isolated Digital I/O by iDoor Technology
  • Supports Fieldbus Protocol by iDoor Technology
  • 3G/GPS/GPRS/Wi-Fi Communication by iDoor Technology
  • Supports 30+ iDOOR combination with four main categories
may-tinh-cong-nghiep-UNO-2484G
Máy tính công nghiệp UNO-2484G

Specifications [UNO-2484G]



Part Number UNO-2484G-6331AE UNO-2484G-6332AE UNO-2484G-6531AE
Environment
Ingress Protection IP40 IP40 IP40
Operating Temperature – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow – 20 ~ 60°C (-4 ~ 140°F) @ 5 ~ 85% RH with 0.7m/s airflow
Vibration Protection Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA) Operating, IEC 60068-2-64, 2 Grms, random, 5 ~ 500 Hz, 1hr/axis (mSATA)
Relative Humidity 10 ~ 95% RH @ 40°C, non-condensing 10 ~ 95% RH @ 40°C, non-condensing 10 ~ 95% RH @ 40°C, non-condensing
Shock Protection Operating, IEC 60068-2-27, 50G, half sine, 11ms Operating, IEC 60068-2-27, 50G, half sine, 11ms Operating, IEC 60068-2-27, 50G, half sine, 11ms
Storage Temperature -40 ~ 85°C ( -40 ~ 185°F) -40 ~ 85°C ( -40 ~ 185°F) -40 ~ 85°C ( -40 ~ 185°F)
I/O Interface
Audio Line-out Line-out Line-out
Power Connector 1x 2 Pins, Terminal Block 1x 2 Pins, Terminal Block 1x 2 Pins, Terminal Block
USB Port 4 x USB3.0 4 x USB3.0 4 x USB3.0
LAN Ports 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet 4 x RJ45, 10/100/1000 Mbps IEEE 802.3u 1000Base-T Fast Ethernet
Displays 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz 1 x HDMI supports 1920×1080 @60Hz, 1 X DP supports 3840 x 2160 @30Hz

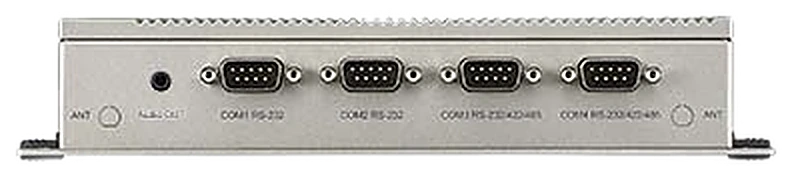

Serial Ports 4 x RS 232/422/485 4 x RS 232/422/485 4 x RS 232/422/485
System Hardware
LED Indicators LEDs for Power, HDD, LAN (Active, Status), RTC Battery low LEDs for Power, HDD, LAN (Active, Status), RTC Battery low LEDs for Power, HDD, LAN (Active, Status), RTC Battery low
Expansion 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version 1 x full-size mPCIe slot for single stack version, 4 x full-size mPCIe slots for dual stack version
Processor 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache 6th Gen Intel Core i3-6100U, 2.3GHz 3M Smartcache
Graphics Engine Intel® HD Graphics 520 Intel® HD Graphics 520 Intel® HD Graphics 520
Ethernet LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 LAN A: Intel i219-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802 ; LAN B-D: Intel i210-IT GbE, 802.1Qav, IEEE1588/802.1AS, 802
Storage One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD One mSATA (slot shared with mPCIe slot); Two drive bay for SATA 2.5″ SSD/HDD
Watchdog Timer Programmable 255 levels timer interval, from 1 to 255 sec Programmable 255 levels timer interval, from 1 to 255 sec Programmable 255 levels timer interval, from 1 to 255 sec
General
OS Support Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux Microsoft® Windows 10, Advantech Win7 64bits,Advantech Linux
Power Consumption 55W (Typical), 95.2W (Max) 55W (Typical), 95.2W (Max) 55W (Typical), 95.2W (Max)
Enclosure Aluminum Aluminum Aluminum
Mounting Stand, Wall, VESA (Optional), Din-rail (Optional) Stand, Wall, VESA (Optional), Din-rail (Optional) Stand, Wall, VESA (Optional), Din-rail (Optional)
Power Requirement 10~36 VDC 10~36 VDC 10~36 VDC
Weight (Net) 1.2 kg (2.65 lbs) 1.2 kg (2.65 lbs) 1.2 kg (2.65 lbs)
Form factor Regular Size with stackable design Regular Size with stackable design Regular Size with stackable design
Certifications CE, FCC, CCC, BSMI, UL CE, FCC, CCC, BSMI, UL CE, FCC, CCC, BSMI, UL

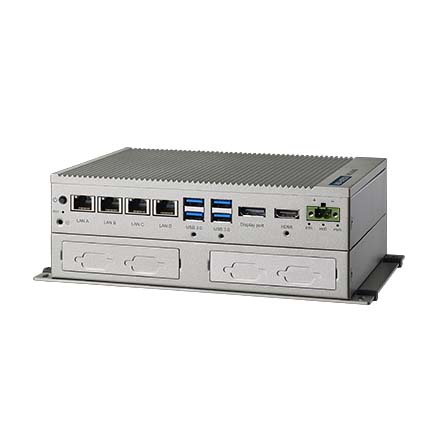

Dimension(W x D x H) 200 x 140 x 40 (7.8″ x 5.6″ x 1.6″ ) for single stack UNO-2484G version 200 x 140 x 70 (7.8″ x 5.6″ x 2.8″) for dual stack UNO-2484G version 200 x 140 x 40 (7.8″ x 5.6″ x 1.6″ ) for single stack UNO-2484G version 200 x 140 x 70 (7.8″ x 5.6″ x 2.8″) for dual stack UNO-2484G version 250 x 160 x 85 mm
