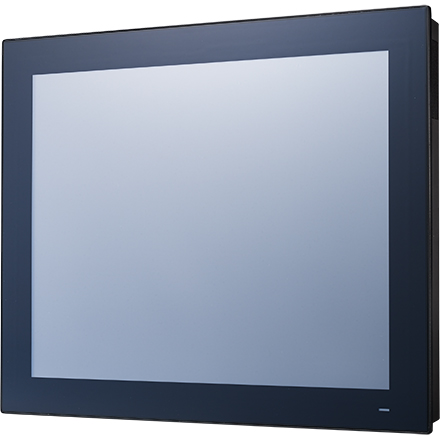

Màn hình cảm ứng PPC-3190

  • 19″ Fanless Panel PC with Intel Atom E3845 Processor
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng





your-image

Màn hình cảm ứng PPC-3190

Overview

19″ Fanless Panel PC with Intel Atom E3845 Processor

Features

  • 19″ TFT SXGA LCD with resistive touchscreen
  • Embedded Intel Atom Quad-Core E3845 1.91G
  • Fanless and Slim design
  • Supports one internal 2.5” SATA HDD, one mSATA socket
  • Built-in one PCI or one PCIe x1 expansion slot
  • Wide operating temp. range from -20~60°C
  • Wide range power input for 9~32V DC
  • One isolated RS-422/485 with Autoflow, Dual Intel GbE
  • One optional GPIO (8 channels, TTL level)

Specifications



Part Number PPC-3190-RE4AE
Processor System
CPU
Intel® Atom™ E3845, Quad core
Frequency
1.91GHz
L3 Cache
2M
Memory
1 x SO-DIMM, DDR3L 1333MHz,Max 8 GB
Storage
1 x 2.5″ SATA Bay, 1 x mSATA Bay
Network (LAN)
2 x 10/100/1000 Mbps Ethernet (Intel I210)
I/O Ports
1 x isolated RS-422/485 (terminal block) 4 x RS-232, two external and two by internal pin header (need optional module), 1 x GPIO (8 channels, TTL level) by internal pin header (need optional module), 1 x USB3.0 + 3 x USB2.0, 1 x D-SUB VGA port, 1 x DP1.1a, 1 x Line-out, 1 x Mic-in
Expansion Slots
1 x Mini PCIe;1 x PCIe x4 or PCI;Optional: 1 x Cfast, 1 x CF card, 1 x internal USB dongle, 2 x RS-232 or 1 x RS-232 + 1 x GPIO
Speaker
2 x 1W
Watchdog Timer
Watchdog Timer
255 timer levels, set up by software
Physical Characteristics
Dimensions
458.2 x 384 x 67.3(mm)(18″ x 15″ x 2.6″)
Weight
7.9 Kg (17.3Ib)
OS Support
OS Support
Microsoft® WEC7/ WES7 32bit&64bit/ Windows 7 32bit&64bit/Windows 8.1 32bit&64bit/Windows 10 32bit&64bit/ Linux
Power Supply
Input Voltage
9 – 32 Vdc
Power Consumption
27W (Burn-In test 7.0 in windows 7 32bits)
Display
Display Type
19″ TFT LED Panel
Max. Resolution
1280 x 1024
Viewing Angle
85°(left), 85°(right), 80°(up), 80°(down)
Luminance (cd/m2)
350
Backlight Life (hrs)
50, 000 hrs (Min.)
Touchscreen
Touch Type
Analog Resistive 5-wire
Light Transmission
81% +/- 3%
Controller
USB interface
Durability (Touches)
36 million
Environment
Operating Temperature
0 ~ 50°C (32 ~ 122°F) with 2.5” SATA HDD -20 ~ 60°C (-4 ~ 140°F) with -40 ~ 85°C mSATA
Storage Temperature
-40 ~ 60°C (-40~140°F)
Relative Humidity
10 ~ 95% @ 40° C (non-condensing)
Shock Protection
Operating 10 G peak acceleration (11 ms duration), follows IEC 60068-2-27
Vibration Protection
Operating Random Vibration Test 5~500Hz, 1Grms @with HDD, follow IEC 60068-2-64
EMC
CE, BSMI, FCC Class A
Safety
CB, CCC, BSMI, UL
Front Panel Protection
IP65 Compliant





Chính sách bán hàng

  • Bảo hành 24 tháng
  • Miễn phí vận chuyển toàn quốc
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.

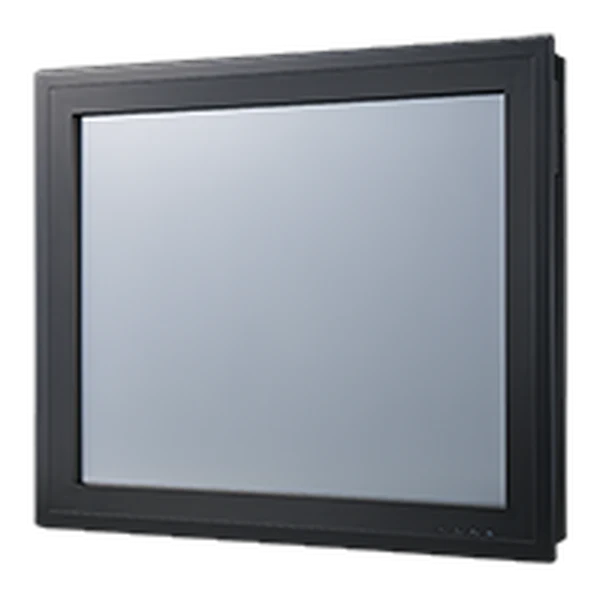

Máy tính công nghiệp màn hình cảm ứng PPC-3190
