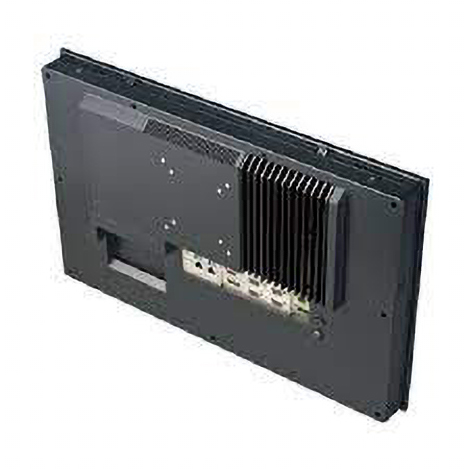

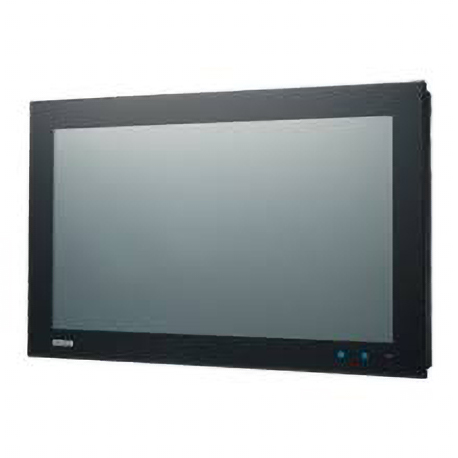

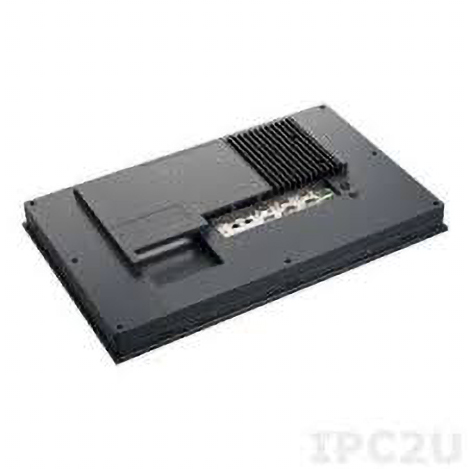

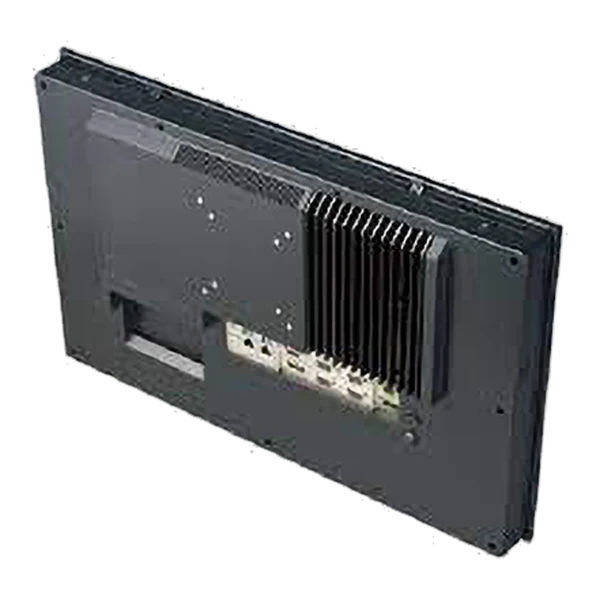

Panel PC công nghiệp PPC-4211W

Mô tả Panel PC công nghiệp PPC-4211W

Panel PC công nghiệp PPC-4211W

Overview

21.5” Fanless Wide Screen Panel PC with 4th Gen.Intel Core i5/i3 Processor

Features

• 21.5" Full HD entirely flat panel with Projected capacitive touchscreen
• High perofrmance Intel Core i CPU with Fanless design
• Optional 2nd SATA 2.5" HDD bay
• PCIe x4 / x1 or PCI expansion support
• Automatic data flow control over RS-485
• Wide Range DC 12-32V support
• Dual Gigabit ethernet, support IEEE1588
• 3 x Independent display

Specifications



Model	PPC-4211W-P5AE	PPC-4211W-R3AE
System
CPU	Intel® Core™ i5-4300U dual core	Intel® Core™ i3-4010U dual core
Frequency	1.9 GHz; 2.9 GHz with turbo boost	1.7 GHz
L2 Cache	3 MB	3 MB
Memory	1 x SODIMM DDR3L 1333/1600 MHz (max. 8 GB) (1.35 V)	1 x SODIMM DDR3L 1333/1600 MHz (max. 8 GB) (1.35 V)
Storage  Network (LAN)	2 x 2.5" SATA bay (supports Intel RAID), 1 x mSATA bay	2 x 2.5" SATA bay (supports Intel RAID), 1 x mSATA bay
Network (LAN)	2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I218LM)	2 x 10/100/1000 Mbps Ethernet (Intel I211-AT; Intel I218LM)
I/O	5 x Serial ports: 4 x RS-232, 1 x RS-422/485 with isolation 1K VDC 4 x USB 3.0 ports in rear side, 1 x USB 2.0 in right side 1 x Line-out, 1x Mic-in 1 x DB15 VGA 1 x Display Port (1.2)	5 x Serial ports: 4 x RS-232, 1 x RS-422/485 with isolation 1K VDC 4 x USB 3.0 ports in rear side, 1 x USB 2.0 in right side 1 x Line-out, 1x Mic-in 1 x DB15 VGA 1 x Display Port (1.2)
Expansion	1 x Mini PCIe, 1 x PCIe x 4 (default); 1 x PCI (in the accessory box)	1 x Mini PCIe, 1 x PCIe x 4 (default); 1 x PCI (in the accessory box)
Watchdog Timer	255 timer levels, set up by software	255 timer levels, set up by software
Speaker	2 x 1W	2 x 1W
Physical Characteristics	1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)	1 x mSATA shared with mPCIe slot, 1 x drive bay for SATA 2.5" HDD (Compatible with 9.5mm height HDD)
Dimensions	557.77 x 349.17 x 63.6 mm (22.0 x 13.7 x 2.5 in)	557.77 x 349.17 x 63.6 mm (22.0 x 13.7 x 2.5 in)
Weight	7.8 kg (17.2 lb)	7.8 kg (17.2 lb)
OS Support
OS Support	Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, Linux	Microsoft® Windows 7/8.1/10 (32/64-bit), WES7, Linux
Power Consumption
Input Voltage	12 ~ 32 VDC	12 ~ 32 VDC
Power Consumption	i5-4300U/i3-4010U: 66W (Burn-in test 7.0 in Windows 7 64 bit)	i5-4300U/i3-4010U: 66W (Burn-in test 7.0 in Windows 7 64 bit)
LCD
Display Type	21.5" TFT LCD (LED backlight)	21.5" TFT LCD (LED backlight)
Max. Resolution	1920 x 1080	1920 x 1080
Viewing Angle	89 (Left),89 (Right),89 (Up),89 (Down)	89 (Left),89 (Right),89 (Up),89 (Down)
Luminance (cd/m2 )	300	300 Contrast Ratio 5000 Backlight Lifetime 50,000 hr (min.)
Contrast Ratio	5000	5000
Backlight Lifetime	50,000 hr (min.)	50,000 hr (min.)
Touchscreen
Touch Type	10-point multi-touch projected capacitive	5-wire analog resistive
Light Transmission	88 % ± 2 % 80% ± 3%	88 % ± 2 % 80% ± 3%
Controller	USB interface	USB interface
Environment
Operating Temperature	0 ~ 50 °C (32 ~ 122 °F)	0 ~ 50 °C (32 ~ 122 °F)
Storage Temperature	-20 ~ 60 °C (-4 ~ 140 °F)	-20 ~ 60 °C (-4 ~ 140 °F)
Relative Humidity	10 ~ 95% @ 40 °C (Non-Condensing)	10 ~ 95% @ 40 °C (Non-Condensing)
Shock	Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27	Operating 10 G Peak Acceleration (11 ms Duration), Follows IEC 60068-2-27
Vibration	Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64	Operating Random Vibration Test 5 ~ 500Hz, 1Grms @with HDD; 2Grms @with SSD, Follows IEC 60068-2-64
EMC	CE, FCC Class B, BSMI	CE, FCC Class B, BSMI
Safety	CB, UL, CCC, BSMI	CB, UL, CCC, BSMI
Front Panel Protection	IP65 compliant	IP65 compliant
