Màn hình cảm ứng TPC-1571H

Click lấy báo giá tại đây!

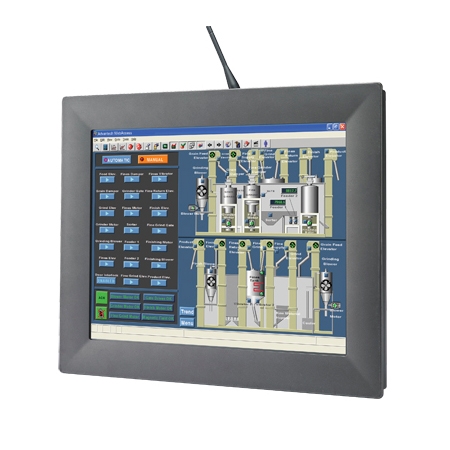

Máy tính công nghiệp màn hình cảm ứng TPC-1571H

15″ XGA TFT LED LCD Intel® Atom™ Dual-Core D525 Touch Panel Computer
  • Hoạt động liên tục 24/7
  • Bảo hành 24 tháng
your-image

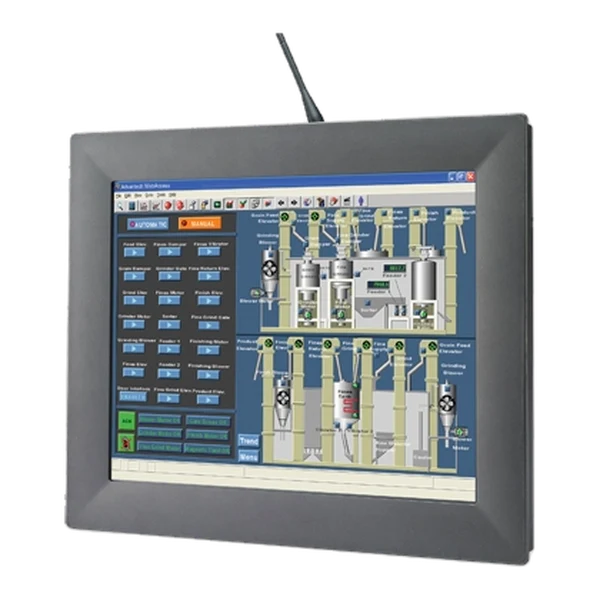

Máy tính công nghiệp màn hình cảm ứng TPC-1571H
  • Intel® Atom™ D525 1.8 GHz processor
  • 15″ XGA TFT LED LCD
  • Compact design with die-cast Al alloy front bezel
  • Fanless cooling system
  • IP65 approved front panel
  • PCIe and Mini PCIe expansion support
  • Supports 4 GB DDR3 SDRAM
  • Integrated 16-channel Digital I/O with isolation
  • 1 MB Battery-backed SRAM
  • Serial port isolation protection
  • Supports Microsoft® WES7/XP/WES/WinCE
  • Supports external antenna for wireless communication
  • Supports field-bus communication for PLC connectivity
  • The TPC-1571H features a fanless low power consuming Intel® Atom™ Dual Core 1.8GHz processor 4GB DDR3 SDRAM and Resistive touch screen, and multiple I/O ports 2 x RS-232 with isolation, 1 x RS-422/485 with isolation. For data storage the fanless TPC devices also include: 1 x Compact Flash Slot and 1 x 2.5″ SATA HDD. To expand function, this model provides PCIe and mini-PCIe expansion slots, an integrated 16-channel Digital I/O with isolation and 1MB Battery-backed SRAM.
  • The TPC-1571HCA comes complete with a CANopen card already installed. This CIA certified control ready platform assures total interoperability between all CANopen devices. The value added control ready platforms have total support for IEC-61131-3 Softlogic Control software as well as HMI/SCADA software and Advantech WebOP design and WebAccess control and monitoring software.
  • Bảo hành 24 tháng
  • Miễn phí dịch vụ lắp đặt, tư vấn sử dụng tại Tp. Hồ Chí Minh
  • Miễn phí dịch vụ bảo trì on-site trong vòng 1 năm tại Tp. Hồ Chí Minh (không bao gồm các huyện ngoại thành). Phản hồi trong vòng 24 tiếng kể từ khi nhận được thông báo.
  • Dịch vụ lắp đặt, bảo trì on-site tại các tỉnh thành khác vui lòng liên hệ để được báo giá.
